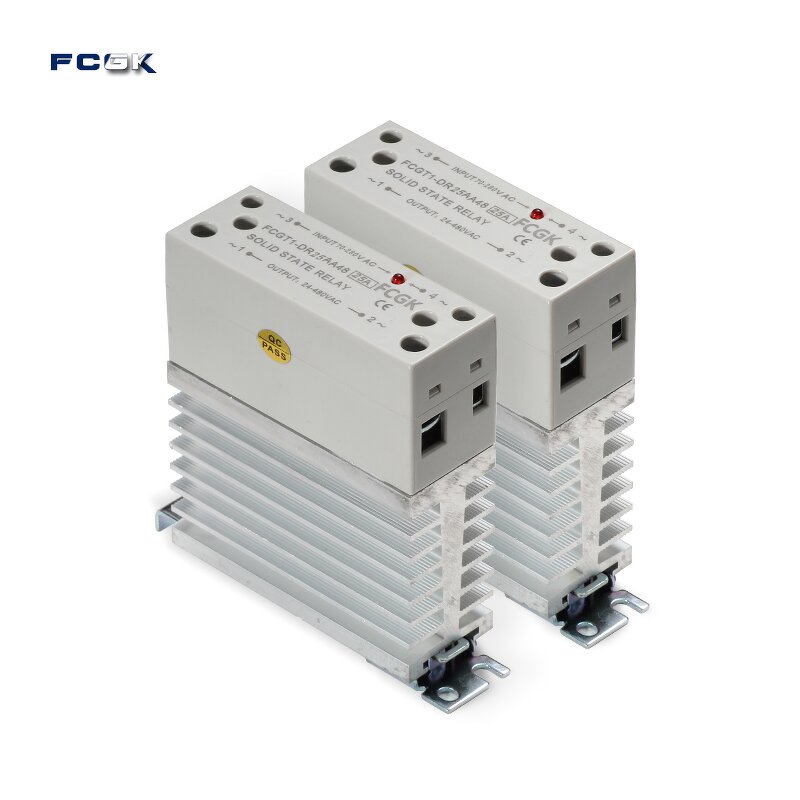

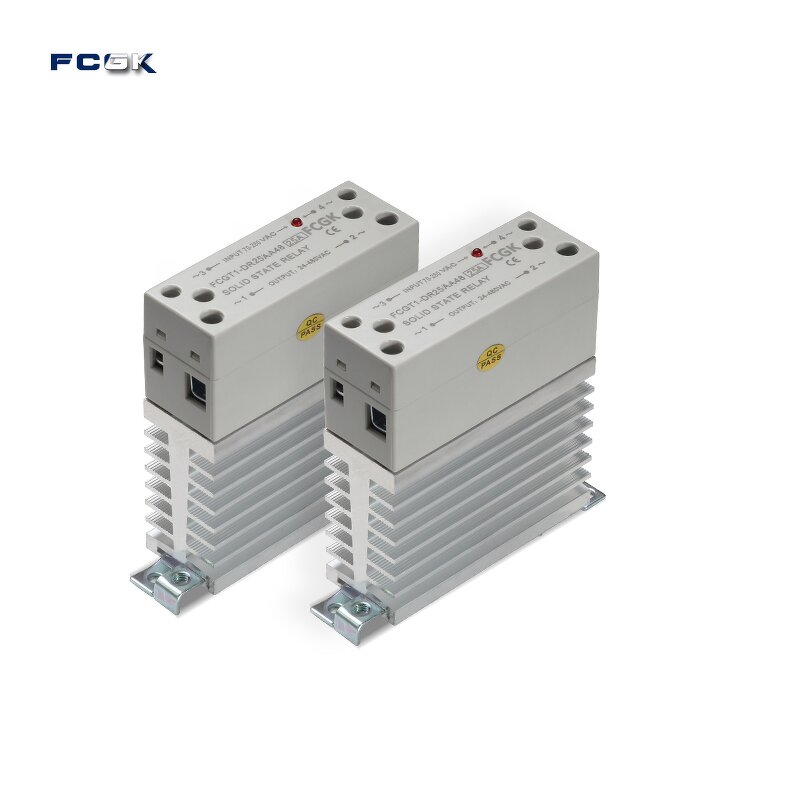

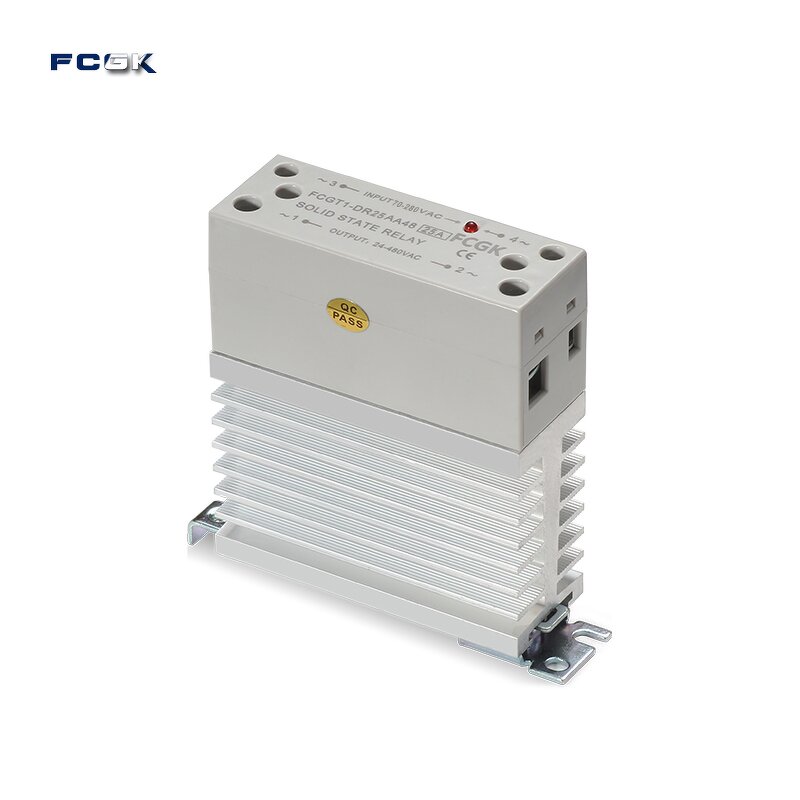

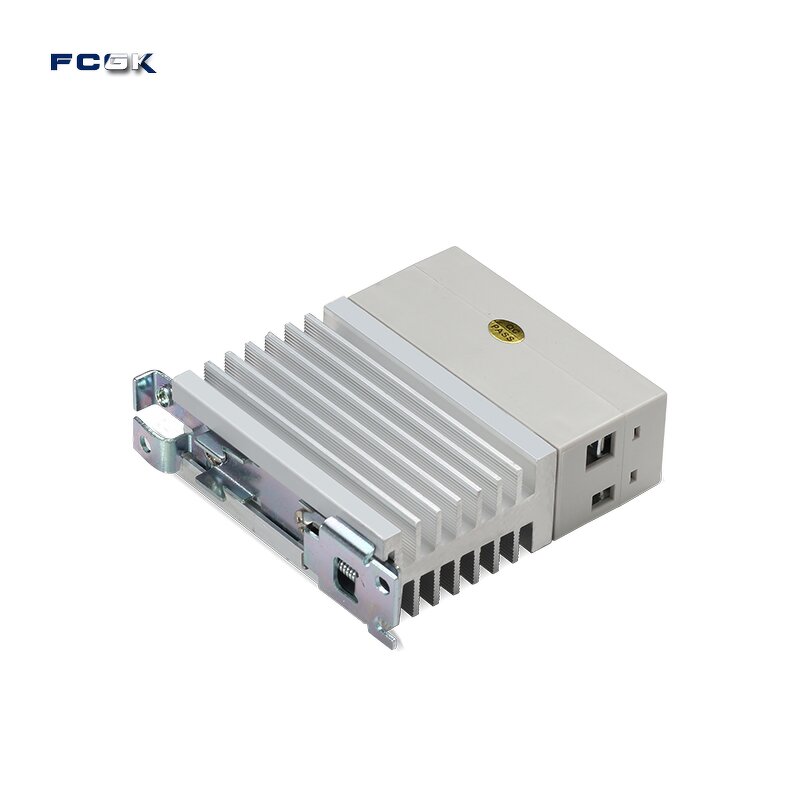

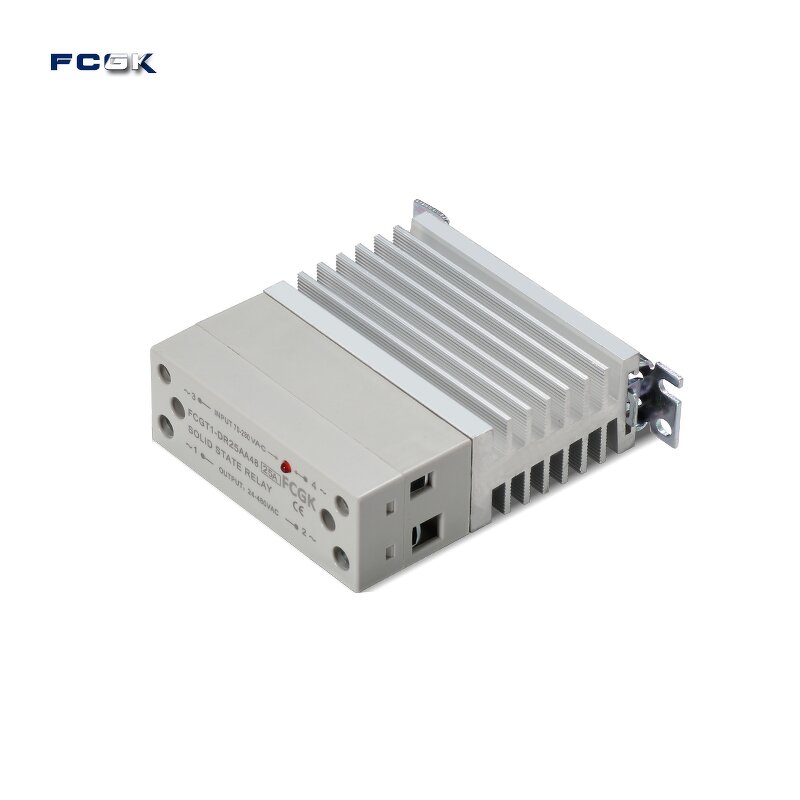

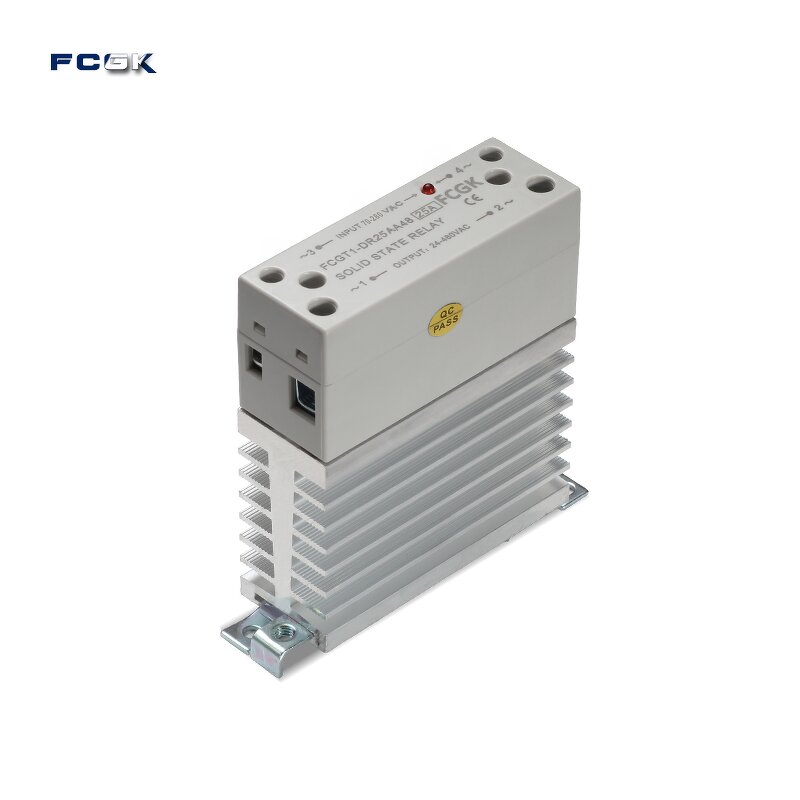

FCGK 25A DC Solid State Relay - Miniature DIN Module 24V 220V with Heatsink
-
US$ 5.87
≥500
-
US$ 6.43
200–499
-
US$ 6.87
≤199
Product Attribute
Contact Form: 1NC
Contact Load: High Power
Max. switching current: 100 A
Rated Current: 120 A
Place of Origin: Zhejiang, China
Model Number: FCGT1-DR25DA48
Brand Name: FCGK
Max. switching voltage: 600 V
Power Source: AC/DC
Protect Feature: Sealed
Size: Miniature
Terminal Shape: Screw Terminal
Theory: Solid State Relay
application: General Purpose
Load Current: 25A
Load Voltage: 24-480VAC
Control Voltage: 3-32VDC
Control current: DC3-25mA
On Voltage: ≤1.5V
Off Leakage Current: ≤2mA
On-off Time: ≤10mS
Dlelectric Stength: 2500VAC
Ambient temperature: -30 ~+75℃
Weight: 315g
Selling Units: Single item
Single package size: 11X11X4 cm
Single gross weight: 0.600 kg
1 years
