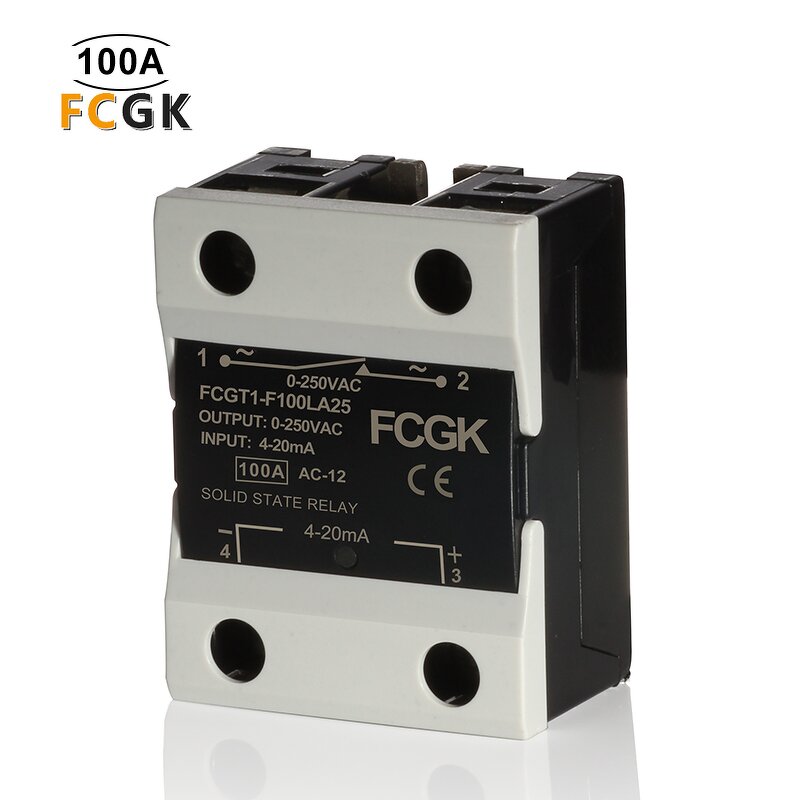

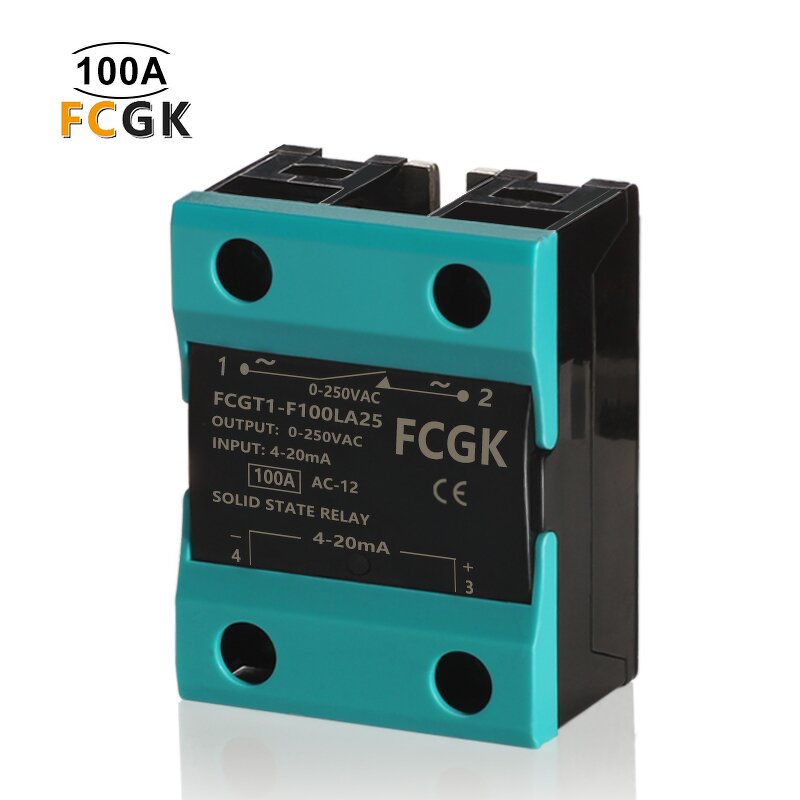

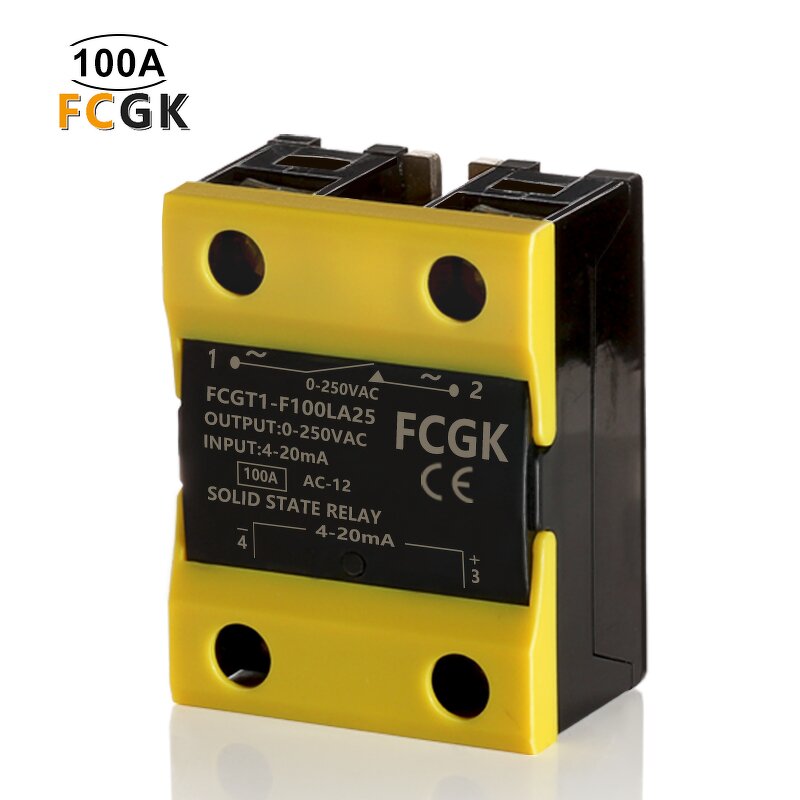

Single Phase 100A Solid State SSR Relay - 0-250VAC Miniature High Power Sealed
-
US$ 6.7
≥500
-
US$ 7.5
200–499
-
US$ 8
≤199
Product Attribute
Contact Load: High Power
Rated Current: Other
Place of Origin: Zhejiang, China
Model Number: FCGT1-F100LA25
Brand Name: FCGK
Protect Feature: Sealed
Size: Miniature
Terminal Shape: Screw Terminal
Theory: Solid State Relay
application: General Purpose
Load Current: 100A
Load Voltage: 0-250VAC
Control Voltage: 1-5VDC
Control current: 4-20mA
On Voltage: ≤1.5V
Off Leakage Current: ≤2mA
On-off Time: ≤10mS
Dlelectric Stength: 2500VAC
Insulation Resistance: 1000MΩ
Ambient temperature: -30 ~+75℃
Selling Units: Single item
Single package size: 11.3X4.5X3.1 cm
Single gross weight: 0.400 kg
1 years
