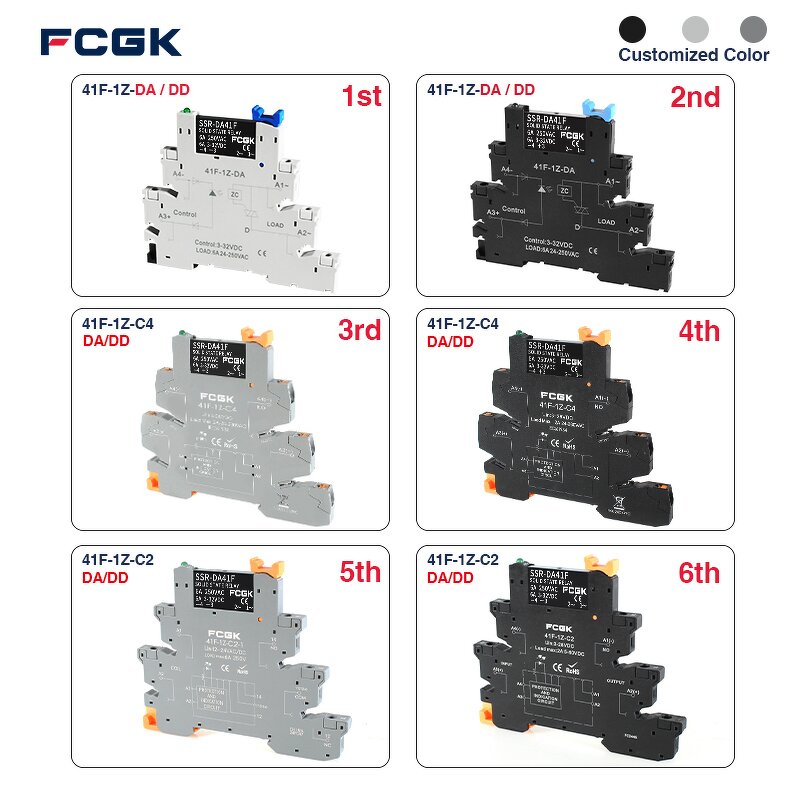

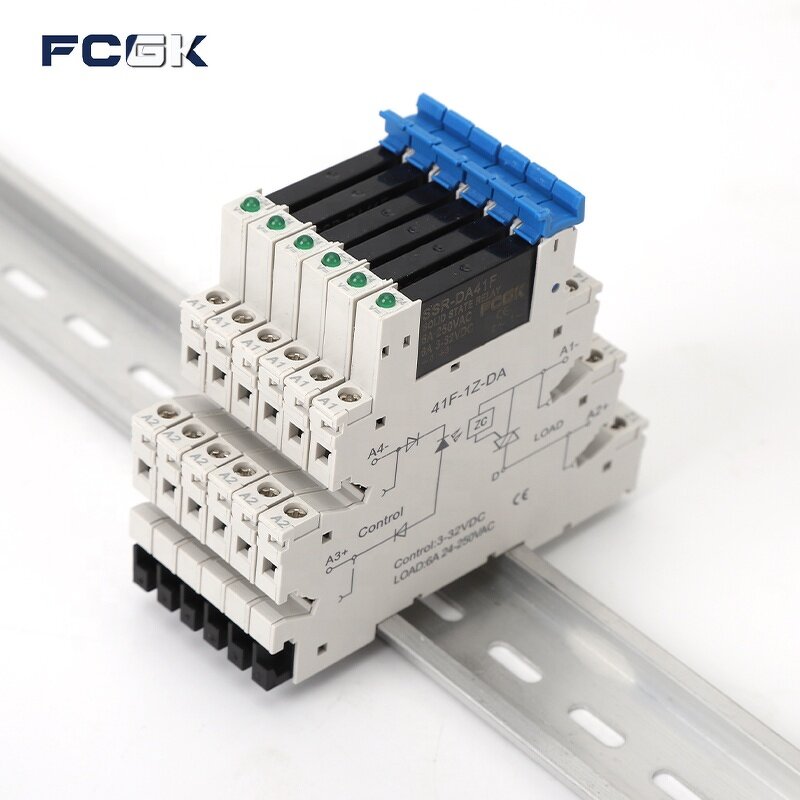

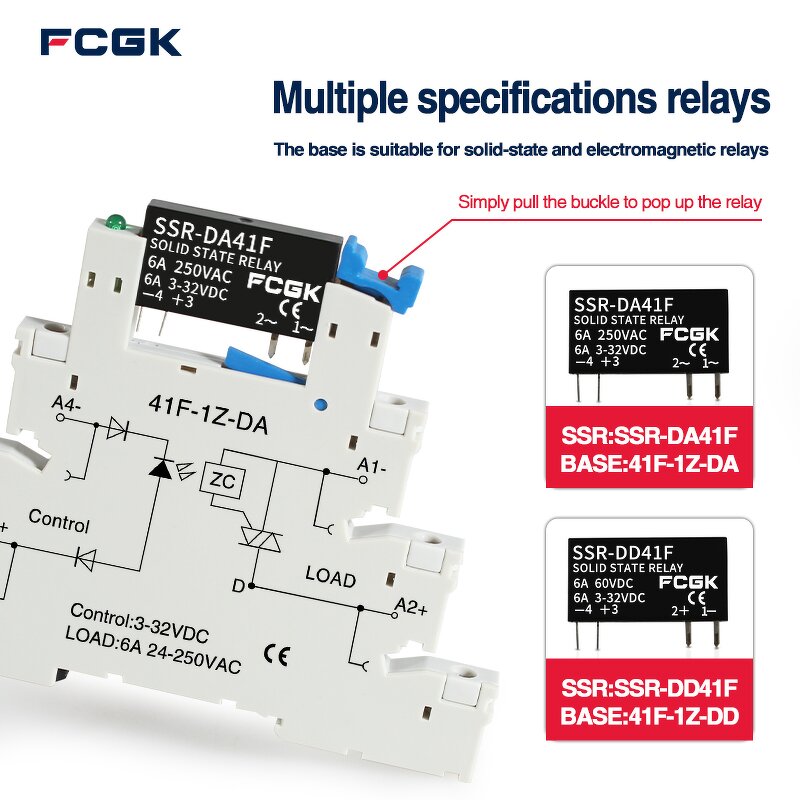

FCGK 280VAC Slim SSR Solid State Relay - DC to AC 41F-1Z-DA C2 5-24V 2A/6A
US$ 2.20
Product Attribute
Contact Form: 1NC
Contact Load: Low Power
Max. switching current: 20A
Rated Current: Other
Place of Origin: Zhejiang, China
Model Number: 41F-1Z-DA or 41F-1Z-DD
Brand Name: FCGK
Contact Material: Copper
Max. switching voltage: 240 V, 60 V
Pins: 2P
Power Source: AC/DC
Protect Feature: Sealed
Size: Miniature
Terminal Shape: Screw Terminal
Theory: Solid State Relay
application: General Purpose
Load Current: 6A
Load Voltage: 24-280VAC or 5-60VDC
Control Voltage: 3-32VDC
Control current: DC3-25mA
On Voltage: ≤1.5V
Off Leakage Current: ≤2mA
On-off Time: ≤10mS
Dlelectric Stength: 2500VAC
Ambient temperature: -30 ~+75℃
Weight: 100g
Selling Units: Single item
Single package size: 9.5X8.5X1 cm
Single gross weight: 0.031 kg
