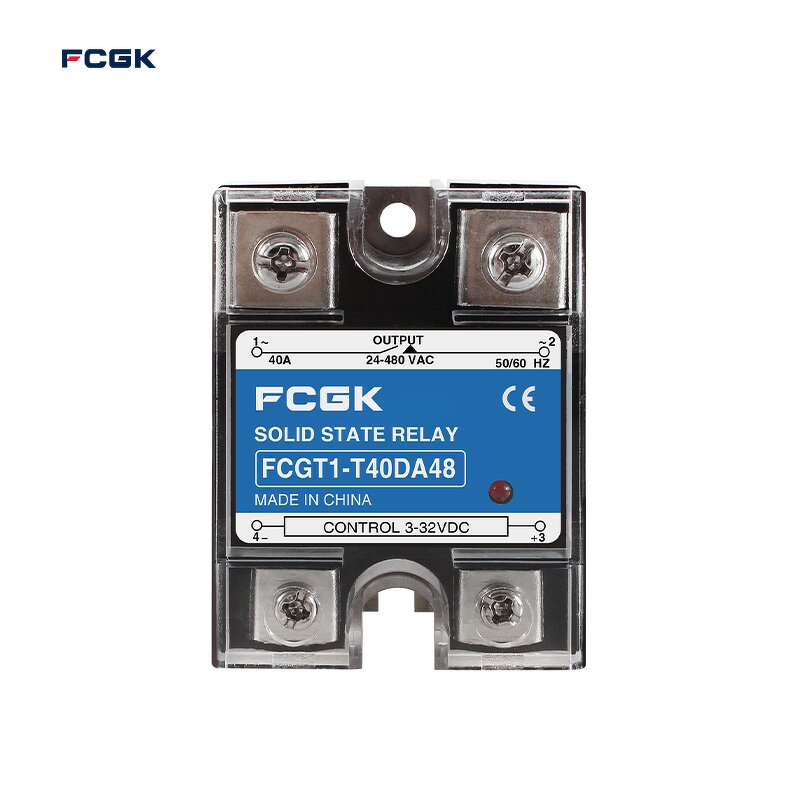

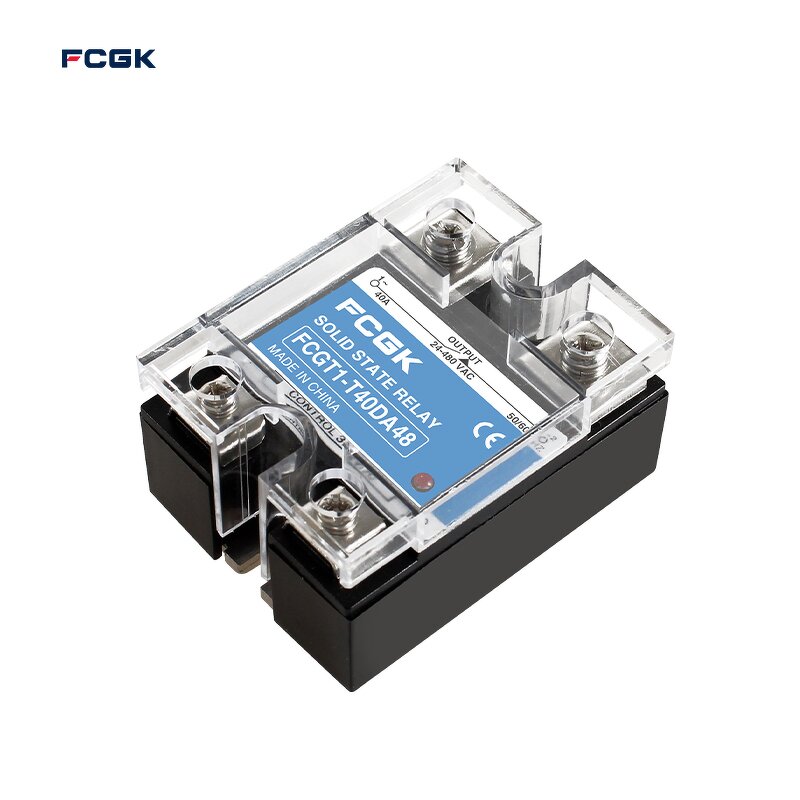

FCGK Sealed Transparent Miniature SSR-10A Solid State Relay - 25A to 120A Single Phase
-
US$ 1.6
≥5000
-
US$ 2.1
1000–4999
-
US$ 2.5
30–999
Product Attribute
Contact Form: 1NC
Contact Load: Low Power
Max. switching current: 100 A
Rated Current: Other
Place of Origin: Zhejiang, China
Model Number: FCGK1-T40DA48
Brand Name: FCGK
Max. switching voltage: 480 V
Power Source: DC
Protect Feature: Sealed
Size: Miniature
Terminal Shape: Screw Terminal
Theory: Solid State Relay
application: General Purpose
Load Current: 10-120A
Load Voltage: 24-480VAC
Control current: 3-32VDC
On Voltage: ≤1.5V
Off Leakage Current: ≤2mA
On-off Time: ≤10mS
Dlelectric Stength: 2500VAC
Ambient temperature: -30 ~ +75℃
Insulation Resistance: 1000M MΩ/500VDC
Weight: 120g
Selling Units: Single item
Single package size: 8X7X4 cm
Single gross weight: 0.120 kg
1 years
