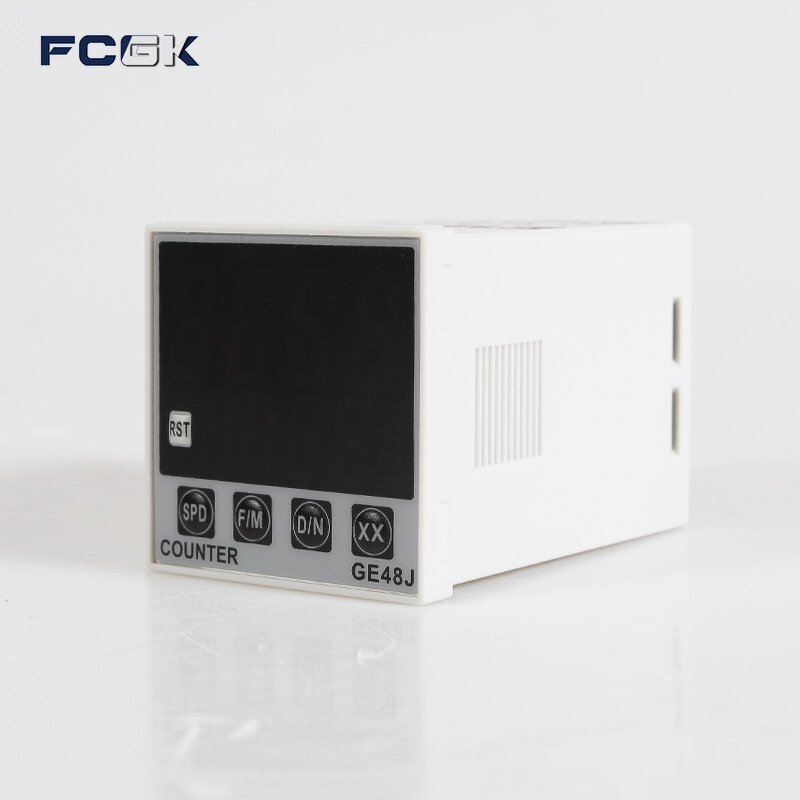

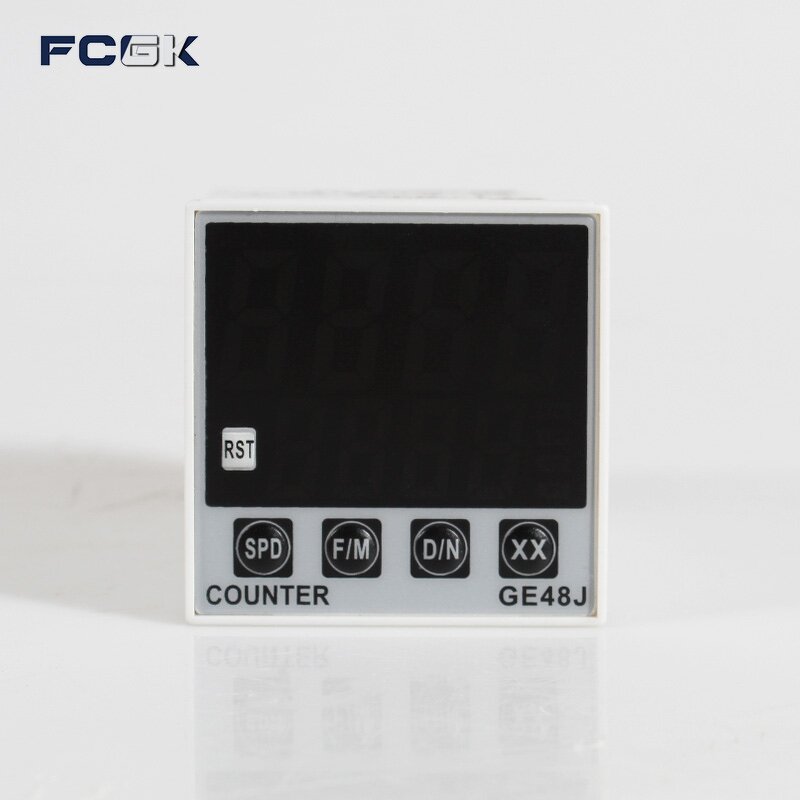

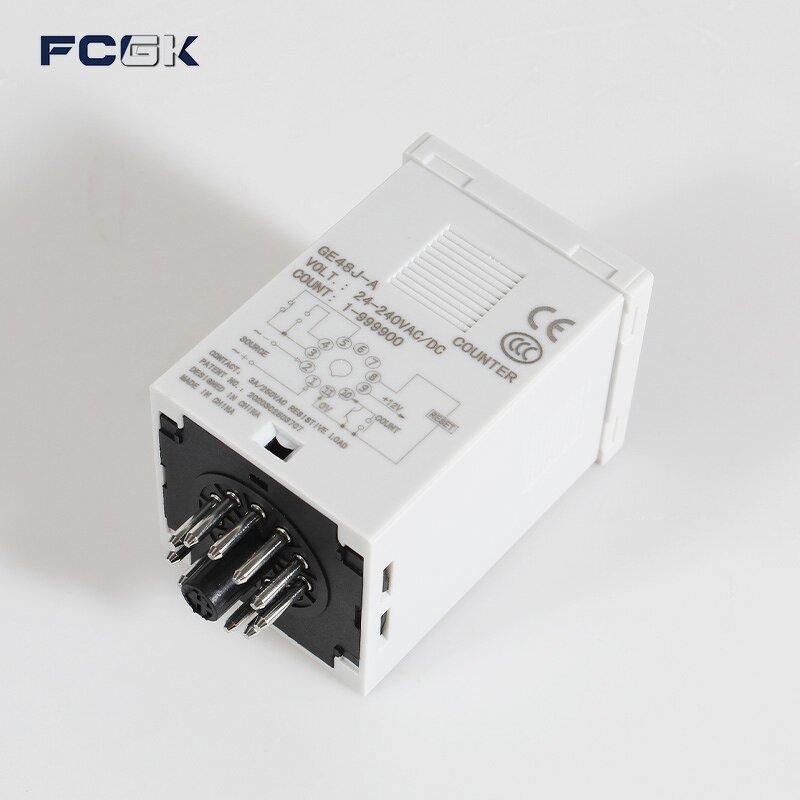

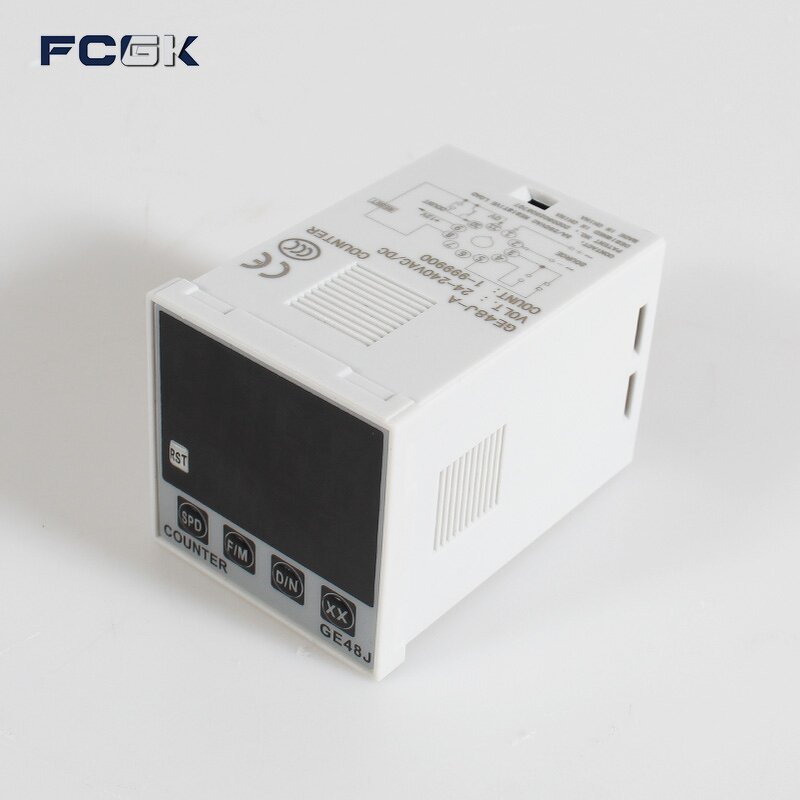

GE48J-A Digital Counter with Output Relay - 11-Pin 24 to 240VAC/DC 50/60hz Sealed
-
US$ 5.5
≥2000
-
US$ 5.8
500–1999
-
US$ 7.8
10–499
Product Attribute
Contact Load: Low Power
Rated Current: Other
Place of Origin: Zhejiang, China
Model Number: GE48J-A
Brand Name: FCGK
Protect Feature: Sealed
Size: 48mm*48mm*89mm
Terminal Shape: Screw Terminal
Theory: Time Relay
application: General Purpose
Size:: 48mm*48mm*89mm
Contact Capacity: 25VDC 5A/250VAC 3A Resistive
Max. Counting rate: Low: ≤ 30/Sec High: ≤ 300/Sec
Min.Counting Pluse: 15MS
Operating Voltage AC: 12V/24V/36V/110V/220V/380V
Operating Voltage DC: 12V/24V
Electric Life/Mechanical life:: 10^5/10^7
Ambient Temperature: -10℃~+50℃
Power consumption: AC 1.5W/DC 2W
Above Sea level:: < 2000m
Selling Units: Single item
Single package size: 7X7X12 cm
Single gross weight: 0.400 kg
1 years
