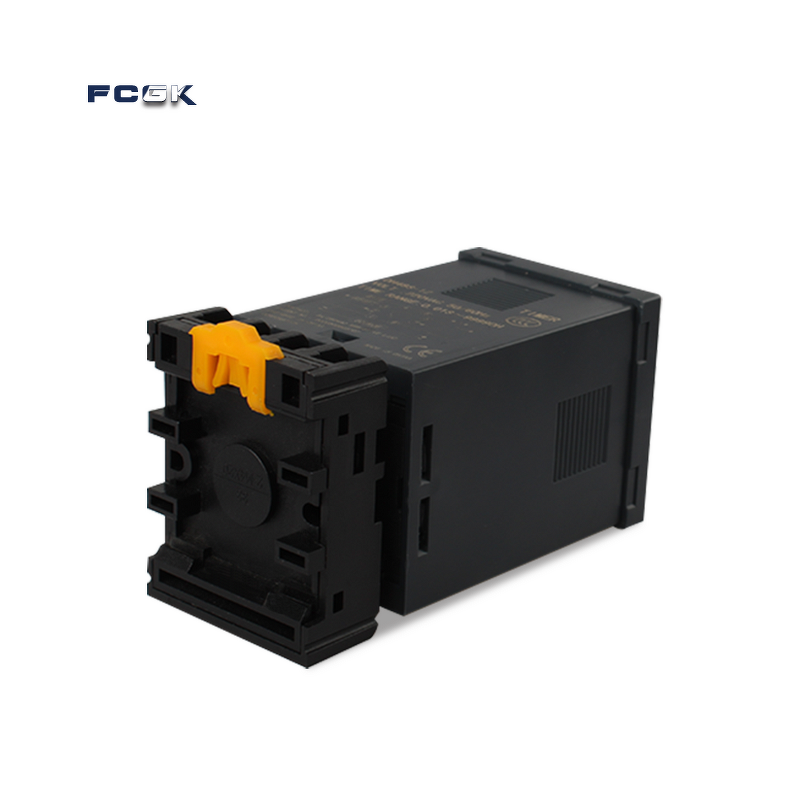

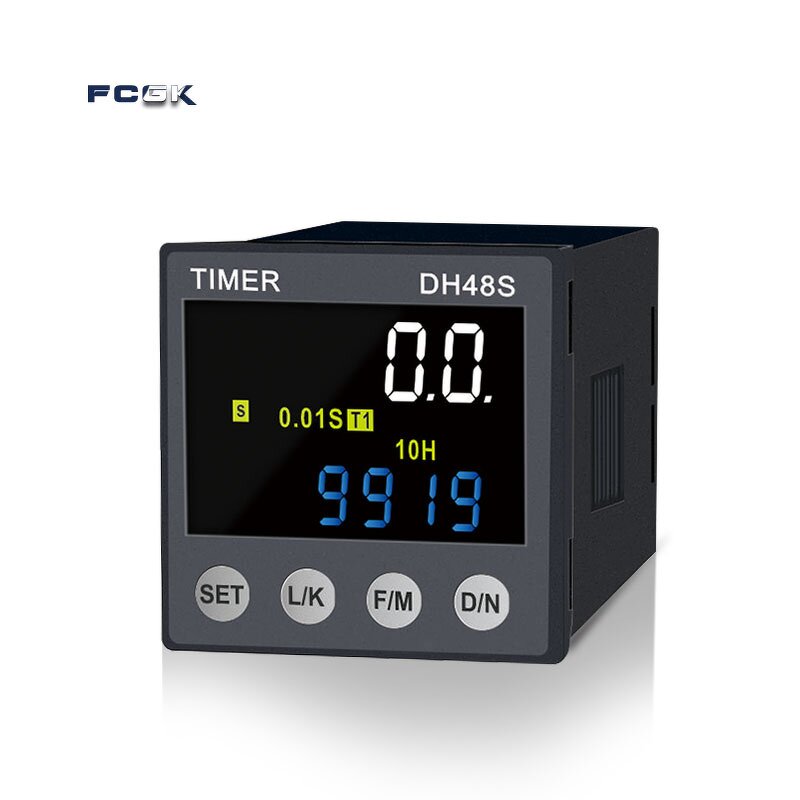

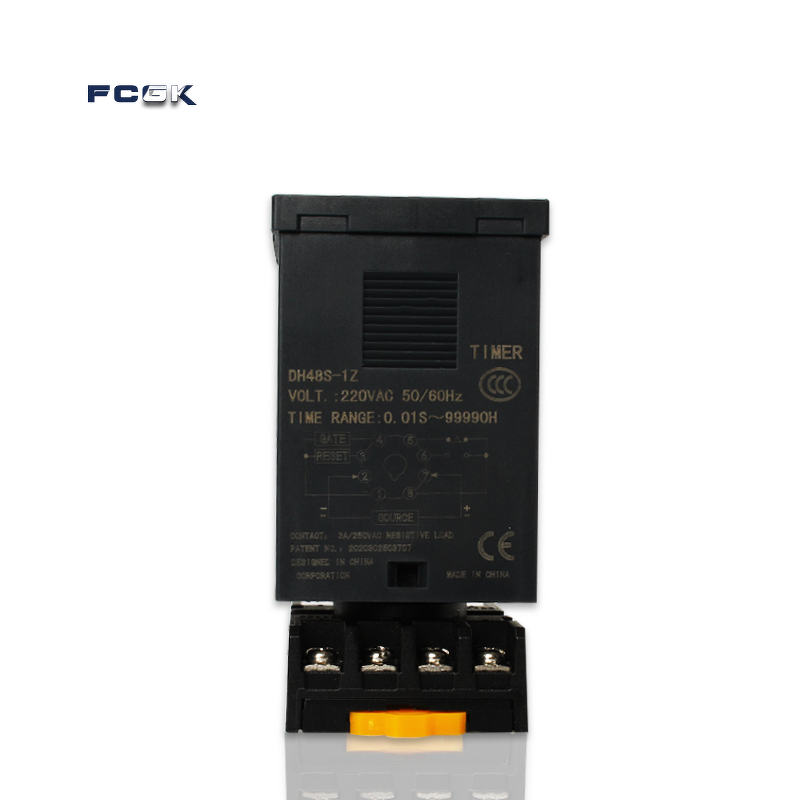

FCGK DH48S Digital Relay Timer Controller - 0.1s 99h Time Delay Repeat Cycle LCD
-
US$ 8
≥500
-
US$ 8.2
200–499
-
US$ 9
≤199
Product Attribute
Contact Load: Low Power
Place of Origin: Zhejiang, China
Model Number: DH48S
Brand Name: FCGK
Protect Feature: Sealed

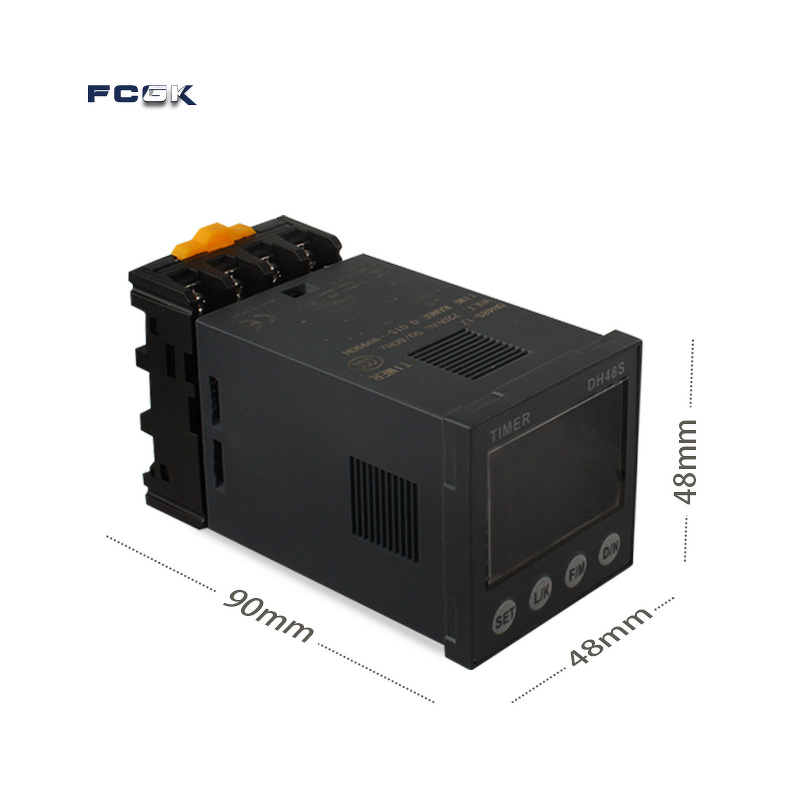

Size: 48mm*48mm*89mm
Theory: Time Relay
application: General Purpose
Contact Capacity: AC220V 3A/ DC 30V 3A Resistance Load
Ambient Temperature: -10℃~+50℃
Time Delay Accuracy: ≤±0.5%
Operating Voltage AC: 12V/24V/36V/110V/220V
Operating Voltage DC: 12V/24V
Time Delay Range:: 0.01s~99.99s,1s~99min99s, 1min~99h99min
Electric Life:: 10^5
Mechanical life: 10^7
Mounting Mode: Panel mounting plug in
Power consumption: ≤ 5W
Selling Units: Single item
Single package size: 9X8X6 cm
Single gross weight: 0.600 kg
1 years
