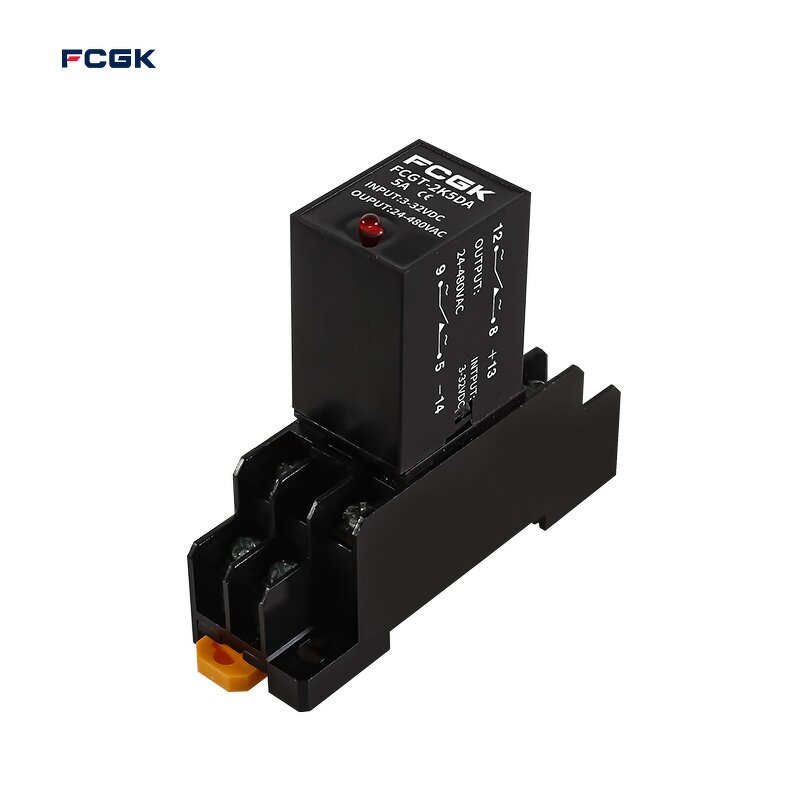

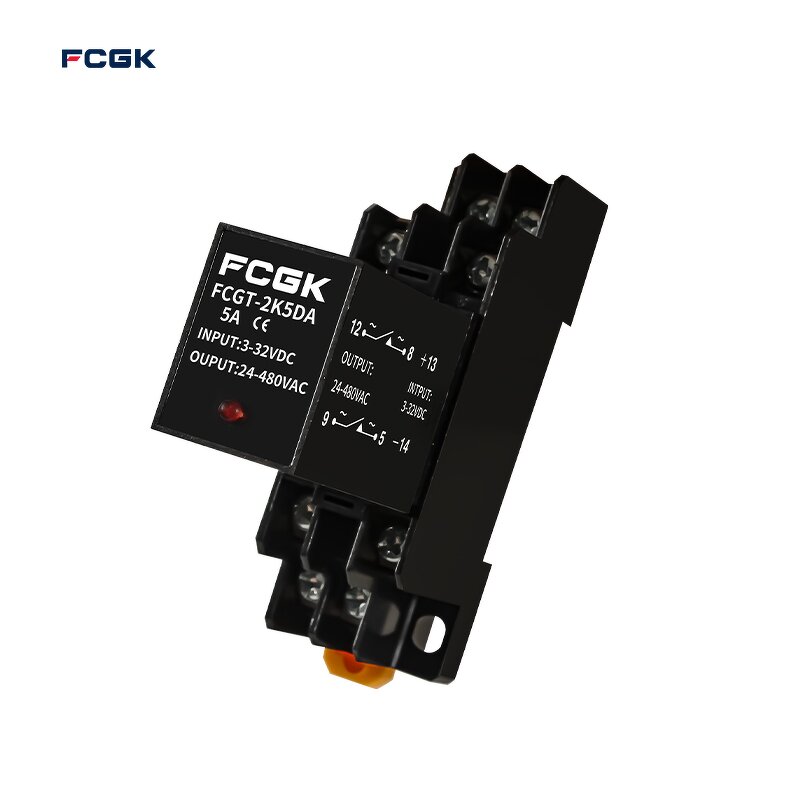

Miniature 5A Solid State Relay - 12V 24V New 8pin Sealed 220V Relay
-
US$ 3.13
≥2000
-
US$ 3.33
500–1999
-
US$ 3.54
20–499
Product Attribute
Contact Form: COM
Contact Load: Low Power
Rated Current: Other
Place of Origin: Zhejiang, China

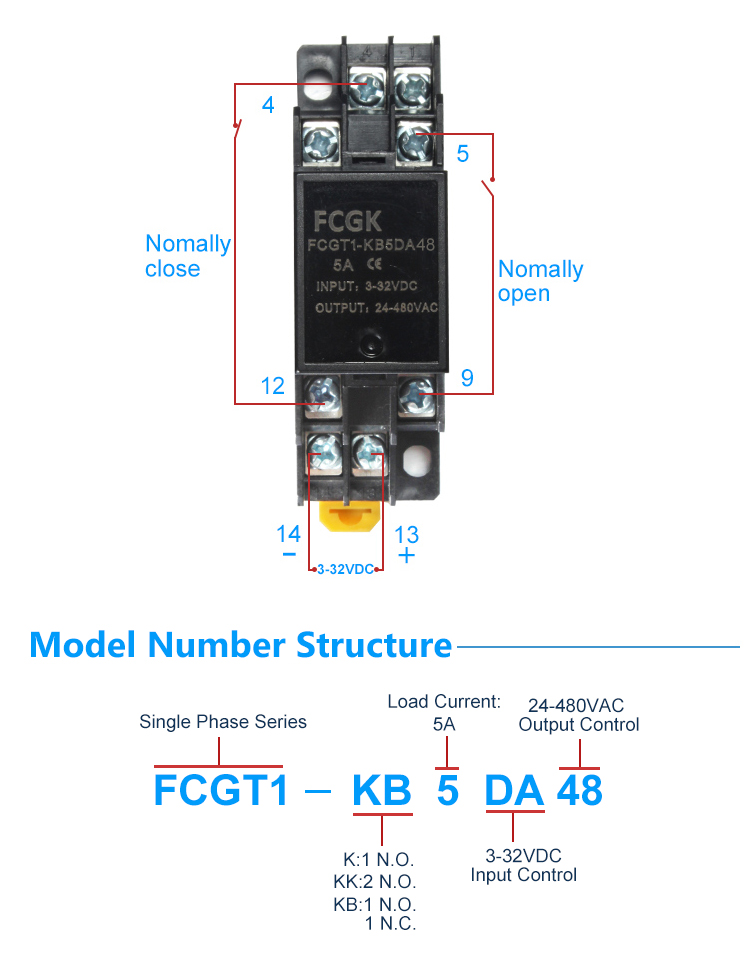

Model Number: FCGT1-KB5DA48
Brand Name: FCGK
Max. switching voltage: 240 V
Pins: 8P
Power Source: AC/DC
Protect Feature: Sealed
Size: Miniature
Terminal Shape: Plug-In Terminal
Theory: Solid State Relay
application: General Purpose
Load Current: 5A
Load Voltage: 24-480VAC
Control Voltage: 3-32VDC
Control current: DC 3-25mA
On Voltage: ≤1.5V
Off Leakage Current: ≤2mA
On-off Time: ≤10mS
Dlelectric Stength: 2500VAC
Insulation Resistance: 1000Ω
Ambient temperature: -30 ~+75℃
Selling Units: Single item
Single package size: 4X4X4 cm
Single gross weight: 0.200 kg
1 years
