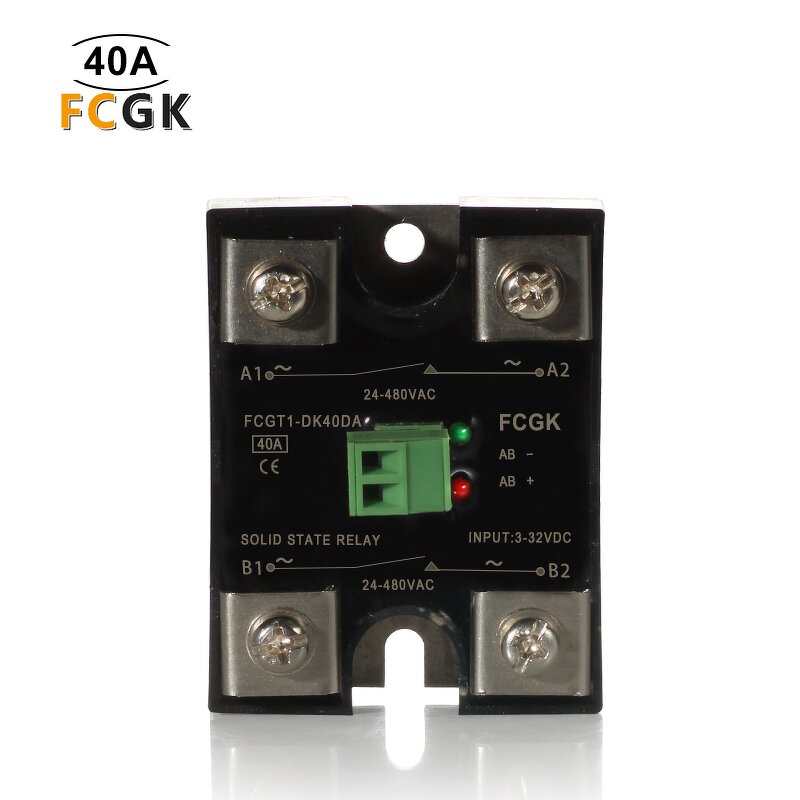

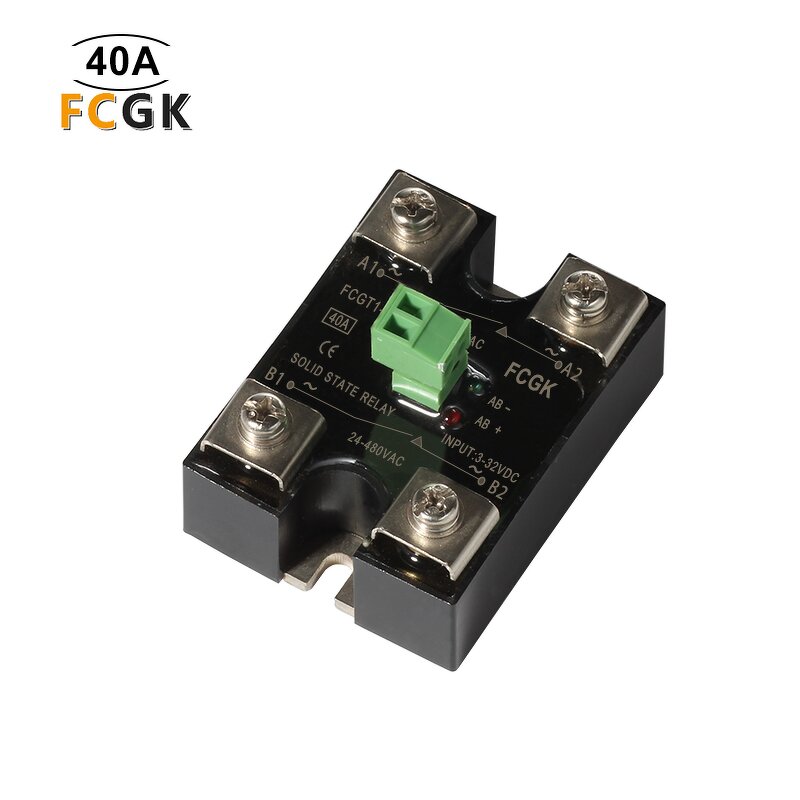

High-Power 40A Miniature 2-Pole DPDT Solid State Relay - DC-AC Dual Circuits 480V
-
US$ 4.79
≥500
-
US$ 5.1
200–499
-
US$ 5.71
≤199
Product Attribute
Contact Load: High Power
Place of Origin: Zhejiang, China
Model Number: FCGT1-DK40DA
Brand Name: FCGK
Protect Feature: Sealed
Size: Miniature
Theory: Solid State Relay
application: General Purpose
Load Current: 40A
Load Voltage: 24-480VAC
Control Voltage: 3-32 VDC
Control current: DC 3-25mA
On Voltage: ≤1.5V
Off Leakage Current: ≤2mA
On-off Time: ≤10mS
Dlelectric Stength: 2500VAC
Insulation Resistance: 1000Ω
Ambient temperature: -30 ~+75℃
Selling Units: Single item
Single package size: 7.3X6X4 cm
Single gross weight: 0.400 kg
1 years
Main Products: Hot, Selling, Products, Relay, Temperature, Controller
Product information
