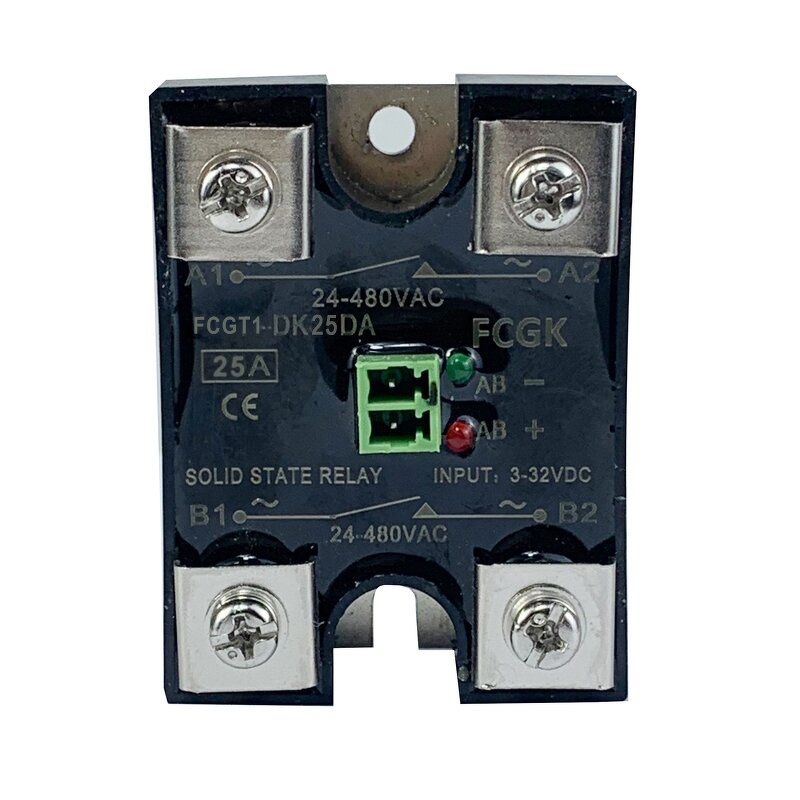

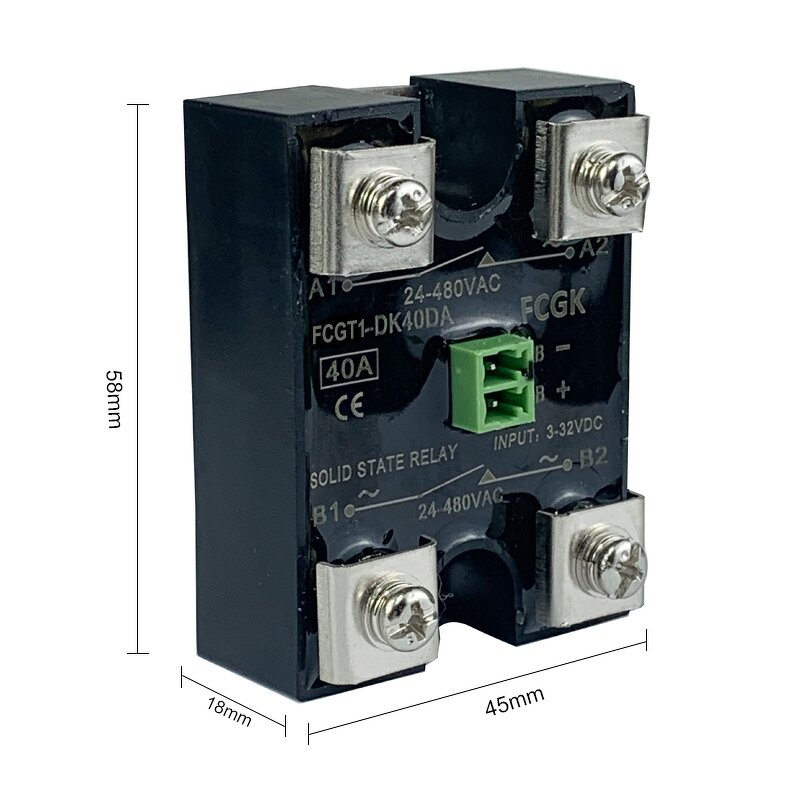

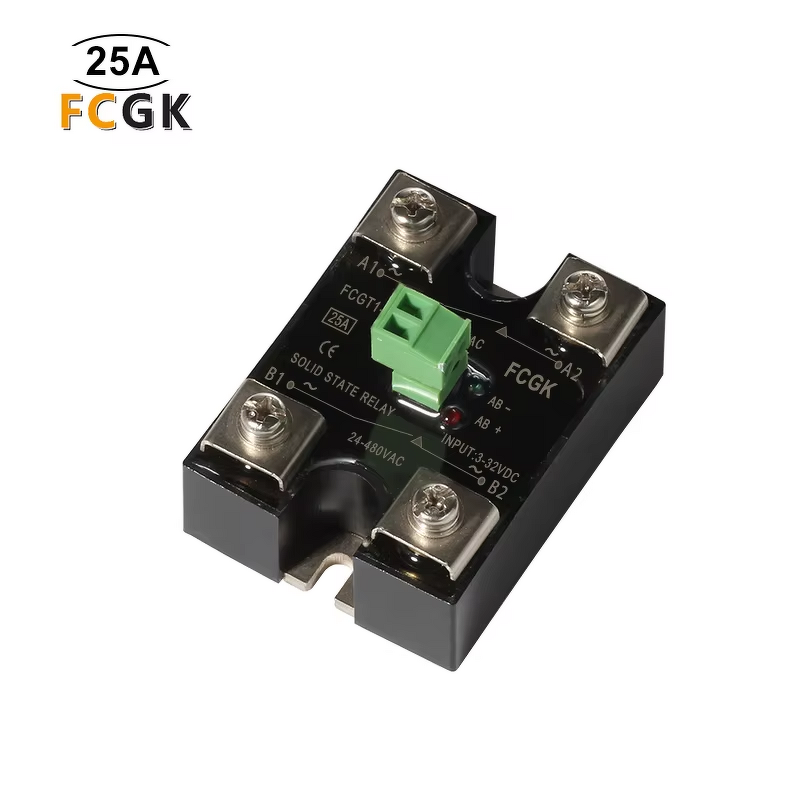

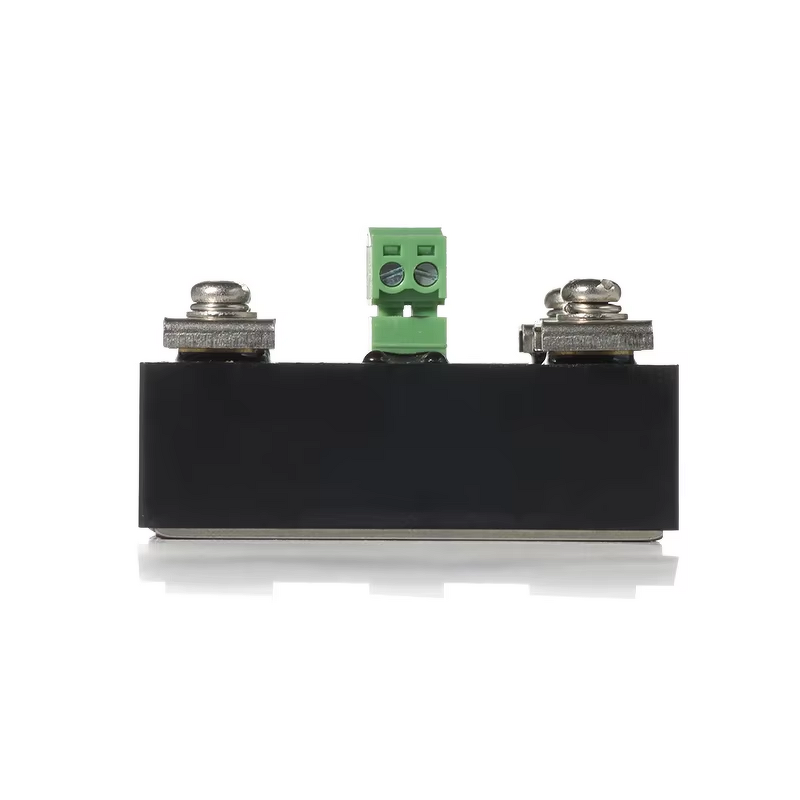

25A Dual Output High Power Solid State Motor Relay SSR - DC-AC Control Miniature Sealed
US$ 3.80
Product Attribute
Contact Form: 2NC
Contact Load: Low Power
Rated Current: Other
Place of Origin: Zhejiang, China
Model Number: FCGT1-DKxxDA
Brand Name: FCGK
Max. switching voltage: 480 V
Power Source: DC
Protect Feature: Sealed
Size: Miniature
Terminal Shape: Screw Terminal
Theory: Solid State Relay
application: General Purpose
Load Current: 10A,25A,40A,60A,75A,80A
Load Voltage: 24-480VAC
Control Voltage: 3-32 VDC
Control current: DC 3-25mA
On Voltage: ≤1.5V
Off Leakage Current: ≤2mA
On-off Time: ≤10mS
Dlelectric Stength: 2500VAC
Insulation Resistance: 1000Ω
Ambient temperature: -30 ~+75℃
Selling Units: Single item
Single package size: 13.0X12.0X5.0 cm
Single gross weight: 0.140 kg
1 years
