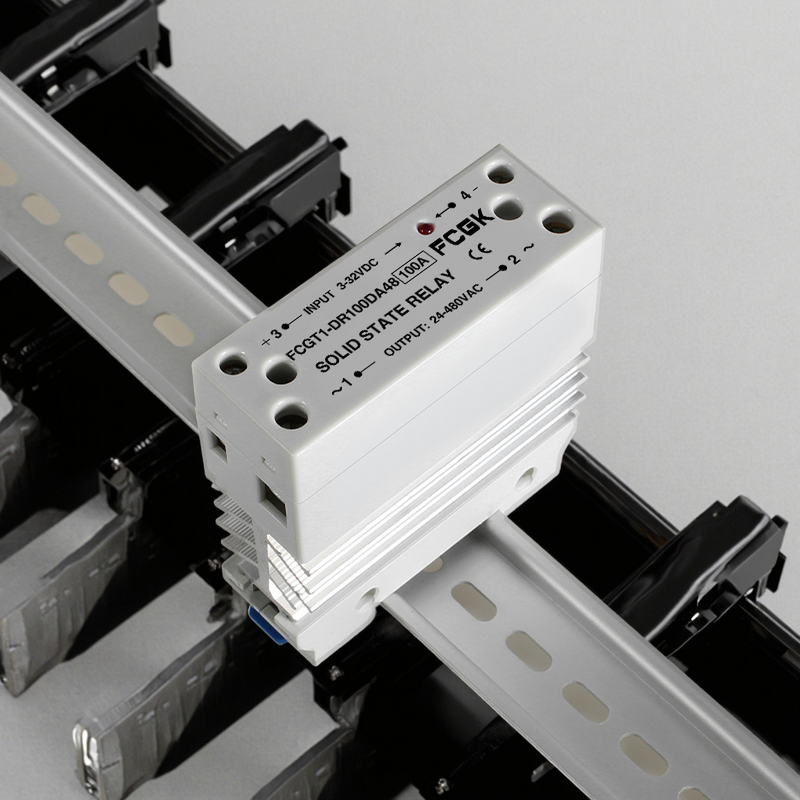

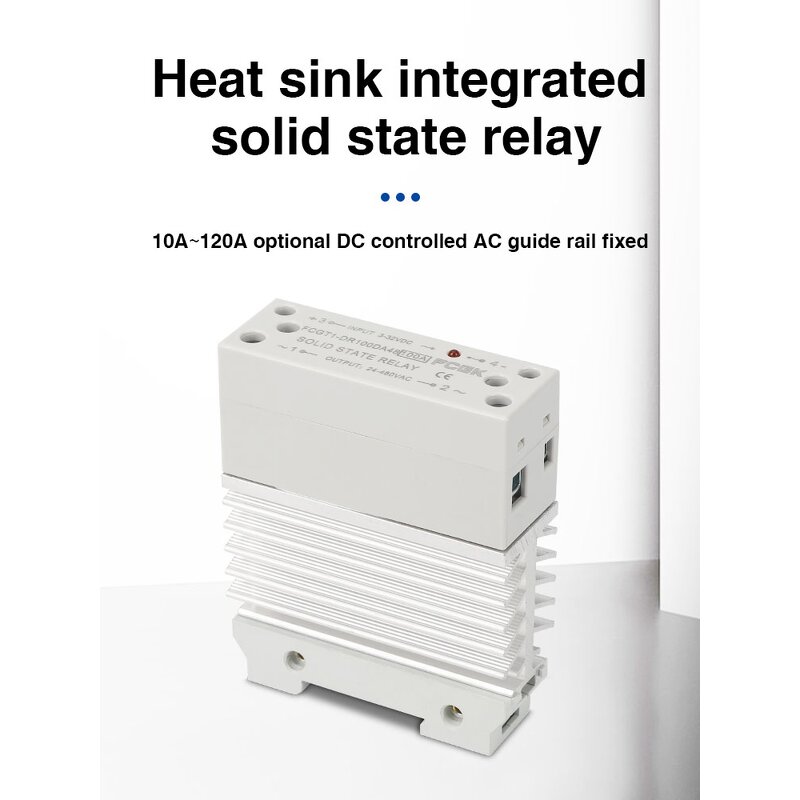

FCGK 40A AC Solid State Slim Relay SSR - 24V 220V DIN Module High Power Miniature
-
US$ 2.2
≥500
-
US$ 2.6
200–499
-
US$ 2.9
≤199
Product Attribute
Contact Form: 1NC
Contact Load: Low Power
Max. switching current: 40 A
Rated Current: 40 A
Place of Origin: Zhejiang, China
Model Number: FCGT1-DR40DA48
Brand Name: FCGK
Max. switching voltage: 480 V
Power Source: AC/DC
Protect Feature: Sealed
Size: Miniature
Terminal Shape: Screw Terminal
Theory: Solid State Relay
application: General Purpose
Model Number: FCGT1-DR100DA48
Load Current: 10-120A
Load Voltage: 24-480VAC
Control Voltage: 3-32VDC/70-280VAC
On Voltage: ≤1.5V
Off Leakage Current: ≤2mA
On-off Time: ≤10mS
Dlelectric Stength: 2500VAC
Ambient temperature: -30 ~+75℃
Weight: 315g
Selling Units: Single item
Single package size: 16X14X6 cm
Single gross weight: 0.300 kg
1 years
