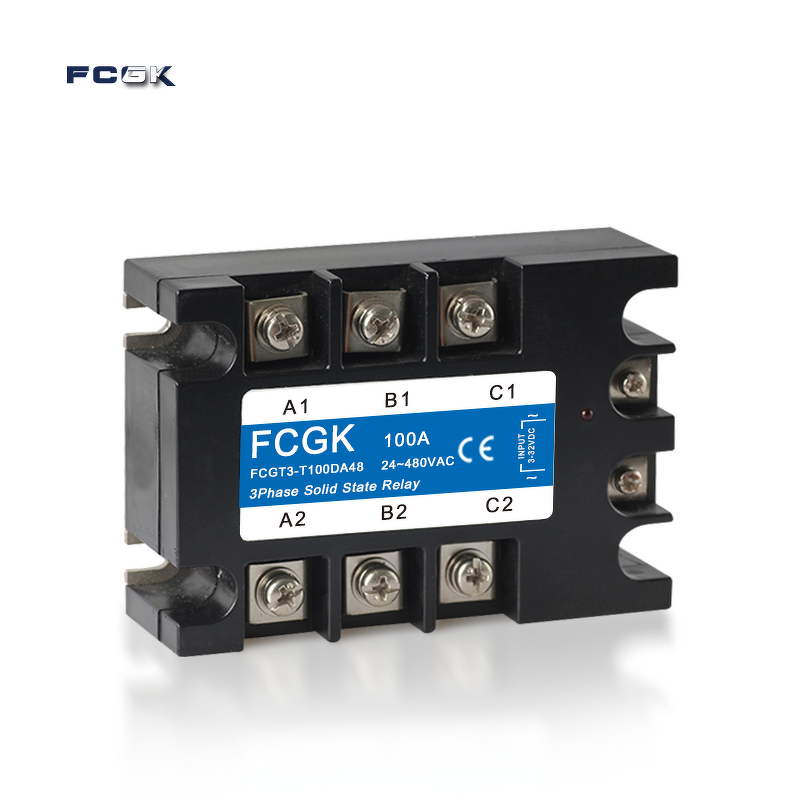

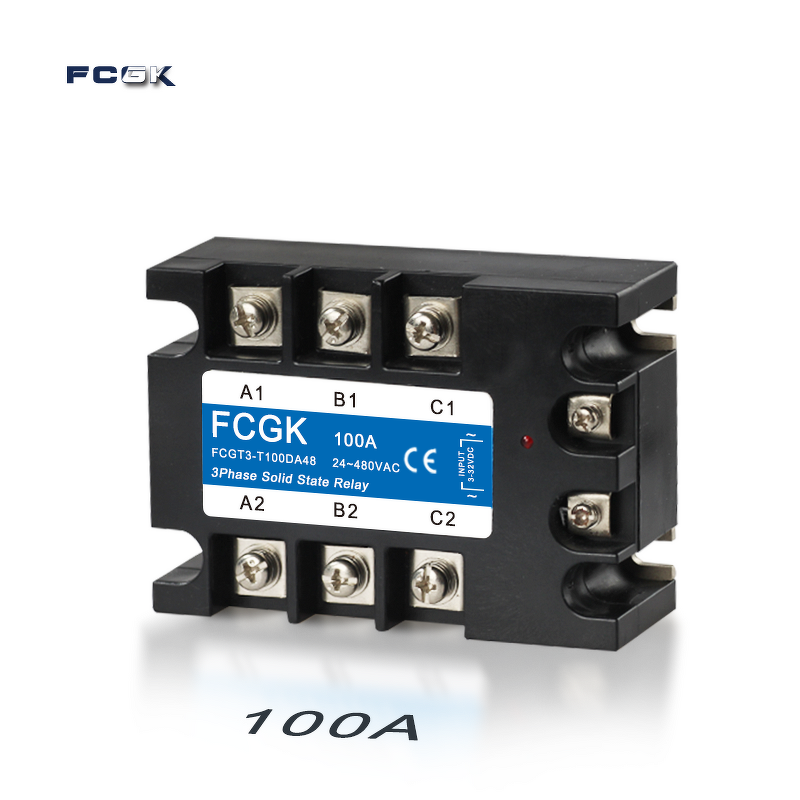

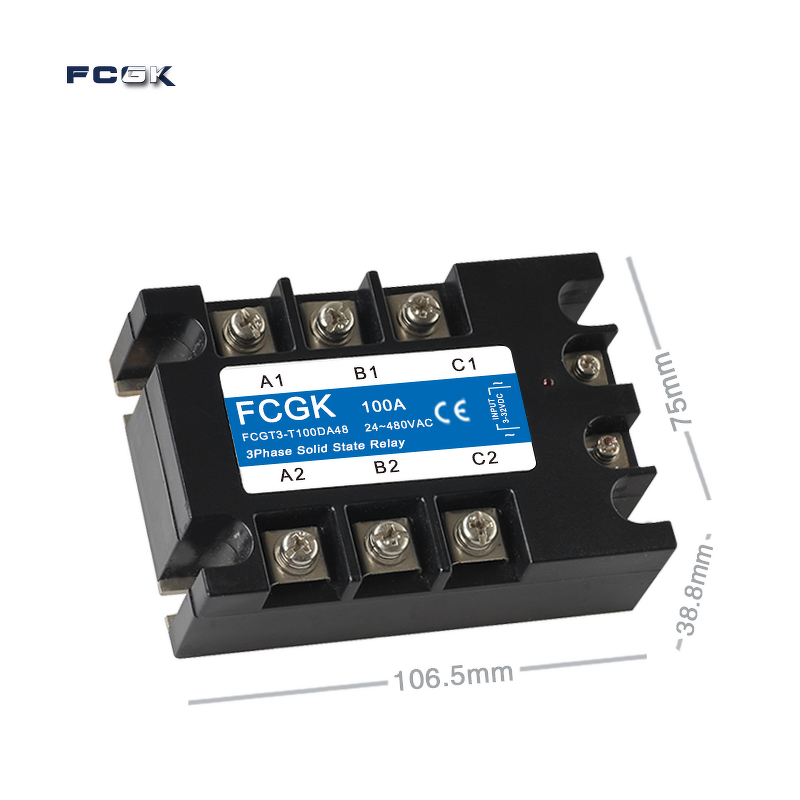

3 Phase Heat Sink SSR - Three Phase 10A to 120A DC 3-32V Output AC 24-480V
-
US$ 5.9
≥500
-
US$ 6.5
200–499
-
US$ 6.9
≤199
Product Attribute
Contact Load: Low Power
Max. switching current: 100 A
Rated Current: Other
Place of Origin: Zhejiang, China
Model Number: FCGT3-T100DA48
Brand Name: FCGK
Max. switching voltage: 480 V
Power Source: AC/DC
Protect Feature: Sealed
Size: Miniature
Terminal Shape: Screw Terminal
Theory: Solid State Relay
application: General Purpose
Load Current: 10A,25A,40A,50A,60A,75A,80A,90A,100A,120A
Load Voltage: 24-480VAC
Control Voltage: 3-32VDC,70-280VAC
Control current: 10-68mA
On Voltage: ≤1.8V
Off Leakage Current: ≤10mA
On-off Time: ≤10mS
Dlelectric Stength: 2500VAC
Ambient temperature: -30~+75℃
Weight: 450g
Selling Units: Single item
Single package size: 12.4X9.2X5.5 cm
Single gross weight: 0.600 kg
1 years
