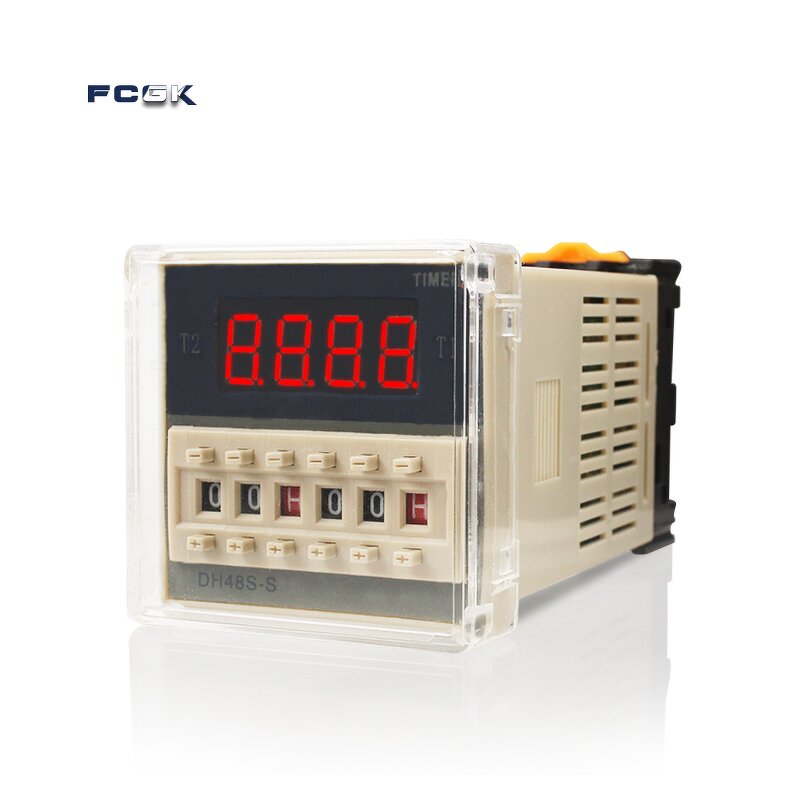

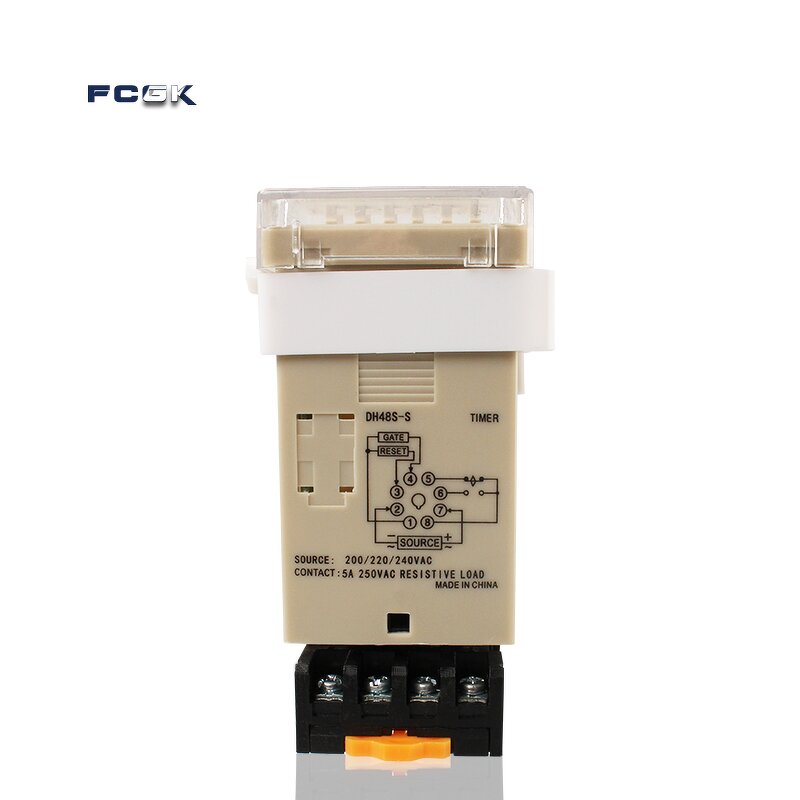

DH48S-S Digital Time Delay Relay - 12V DC to 220V AC 0.1s to 99h Repeat Cycle
-
US$ 3.05
≥200
-
US$ 3.31
50–199
-
US$ 3.72
≤49
Product Attribute
Contact Load: Low Power
Place of Origin: Zhejiang, China
Model Number: DH48S-S
Brand Name: FCGK
Protect Feature: Sealed

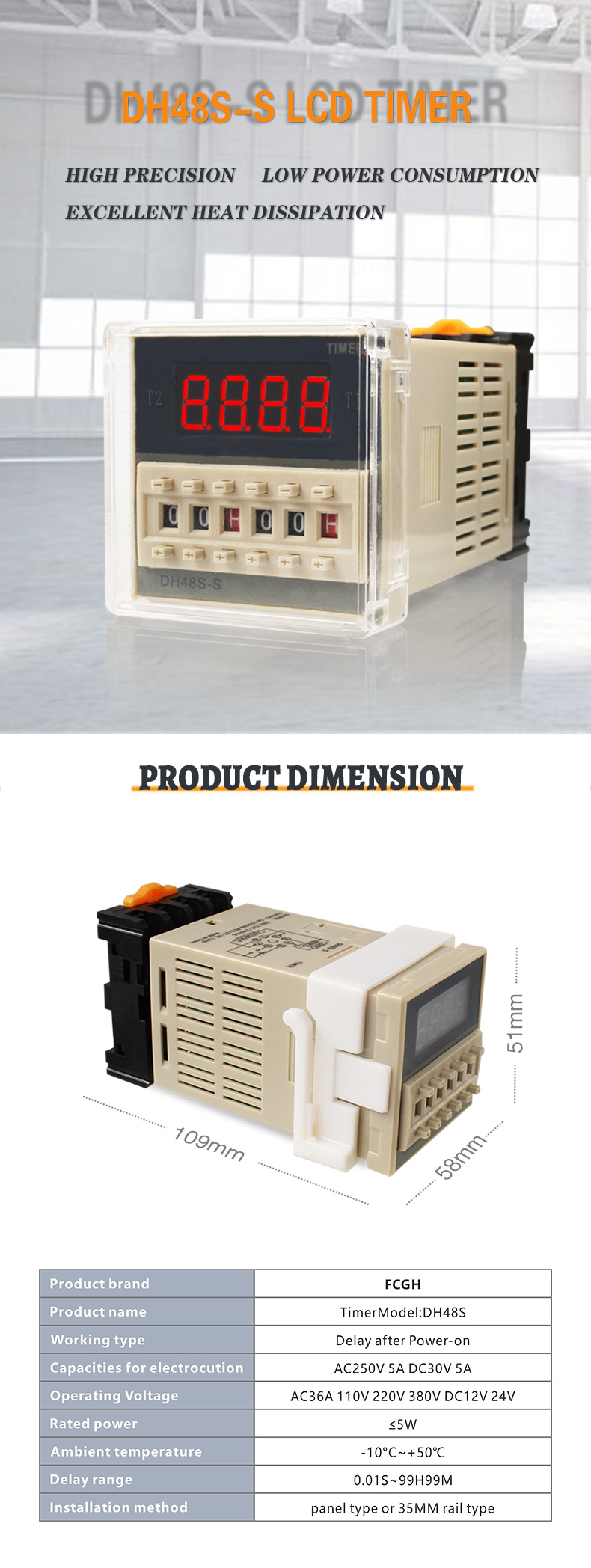

Size: 48mm*48mm*89mm
Theory: Time Relay
application: General Purpose
Contact Capacity: AC220V 5A/ DC 30V 5A Resistance Load
Ambient Temperature: -10℃~+50℃
Time Delay Accuracy: ≤±0.5%
Operating Voltage AC: 12V/24V/36V/110V/220V/380V
Operating Voltage DC: 12V/24V
Time Delay Range:: 0.01s~99.99s,1s~99min99s, 1min~99h99min
Electric Life:: 10^5
Mechanical life: 10^7
Mounting Mode: Panel mounting plug in
Power consumption: ≤ 5W
Selling Units: Single item
Single package size: 9X8X6 cm
Single gross weight: 0.600 kg
1 years
