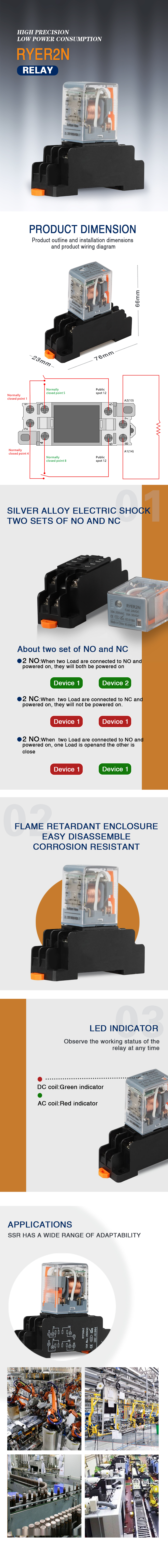

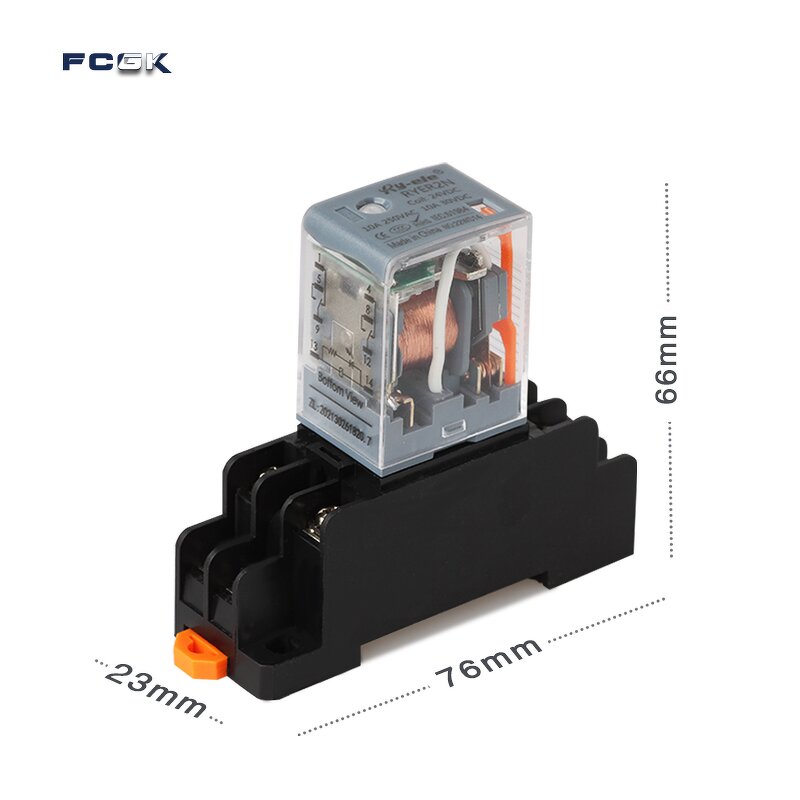

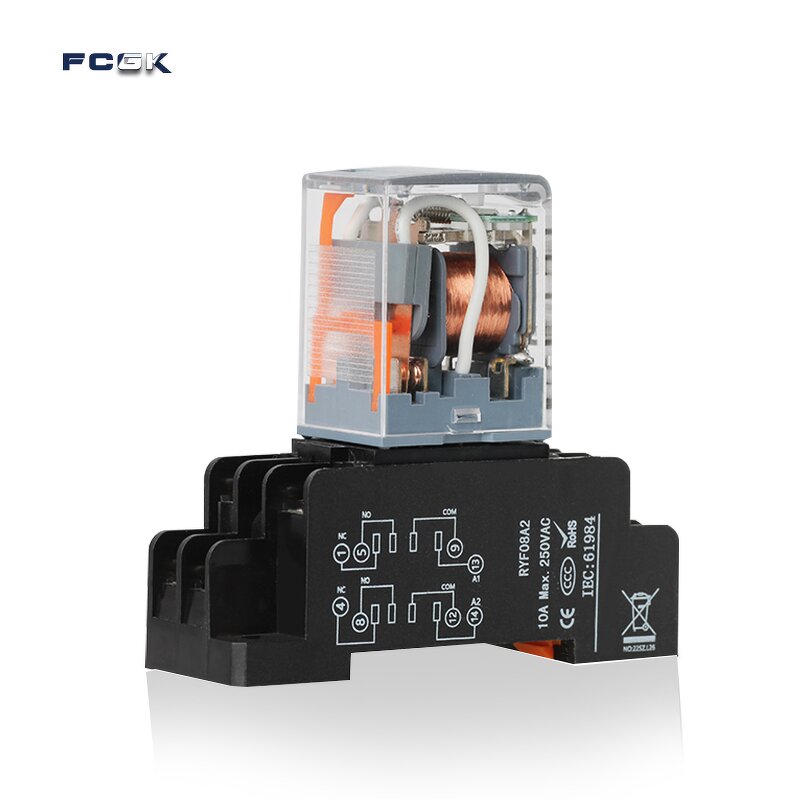

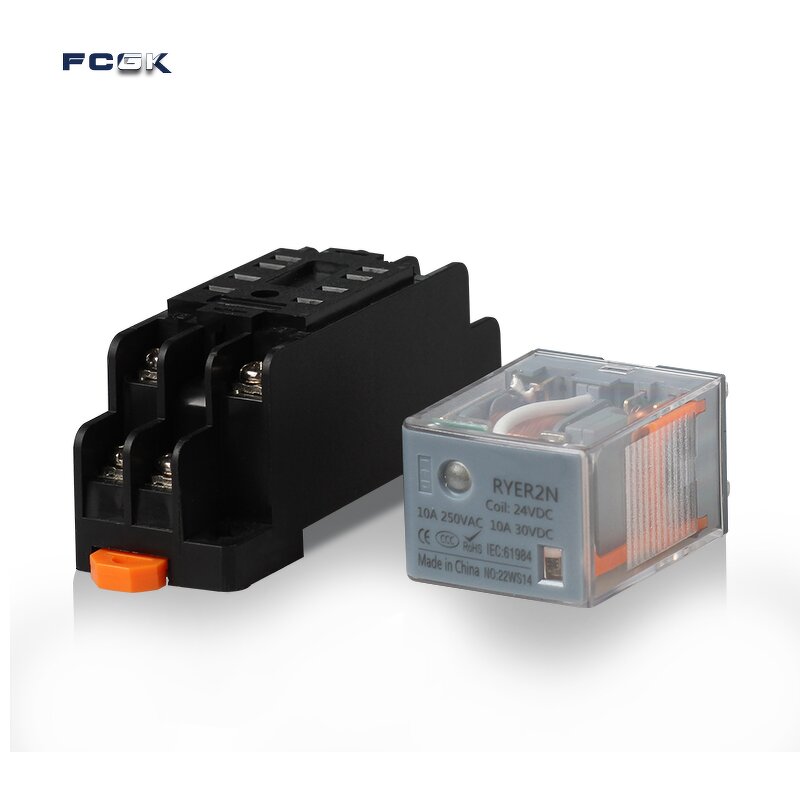

FCGK RYF08A2 Relay - 10A 250VAC 8 Pin Universal Intermediate Relay 14 Pin Socket
-
US$ 1.93
≥1000
-
US$ 2.09
500–999
-
US$ 2.13
10–499
Product Attribute
Contact Load: High Power
Place of Origin: Zhejiang, China
Model Number: RYF08A2
Brand Name: FCGK
Protect Feature: Sealed
Size: Miniature
Theory: Electromagnetic Relay
application: General Purpose
Product name: Relay
Contact form: 2N 4N
Contact Load: 10A/250VAC/30VDC
Contact resistance: ≤50mΩ
Contact material: Ag alloy
Electrical life: 1x10^5
Insulation resistance: 1000mΩ(500VDC)
Ambient temperature: --40~+70℃
Coil power: DC(0.9W) AC(1.2VA)
environment humidity: 5%~85%RH
Packaging Details: each product packed in a box individually, 10 boxes packed into a large carton.
Selling Units: Single item
Single package size: 11.4X9X5 cm
Single gross weight: 0.500 kg
Packaging examples:
