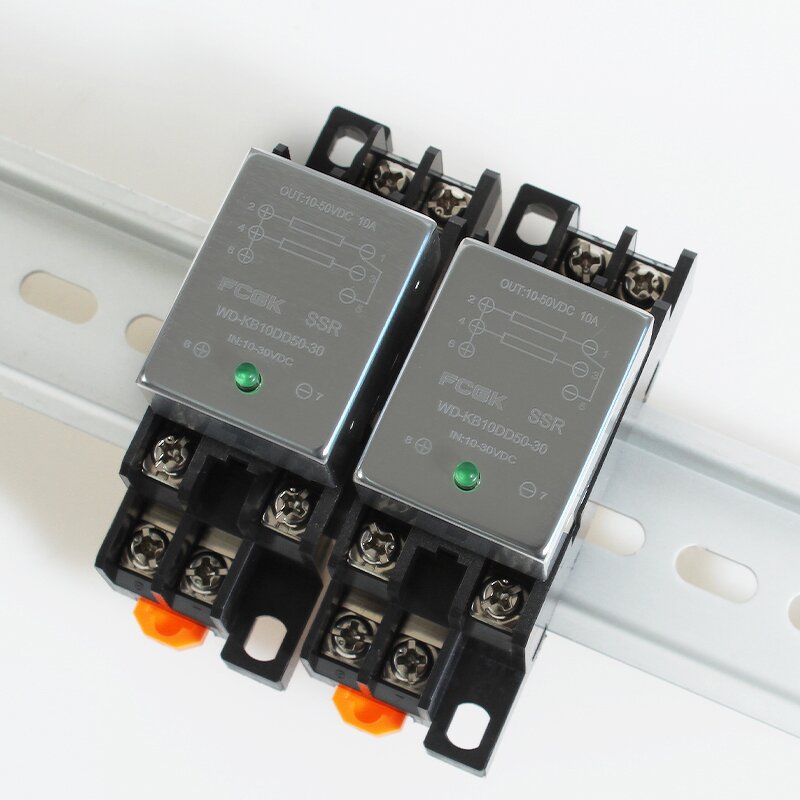

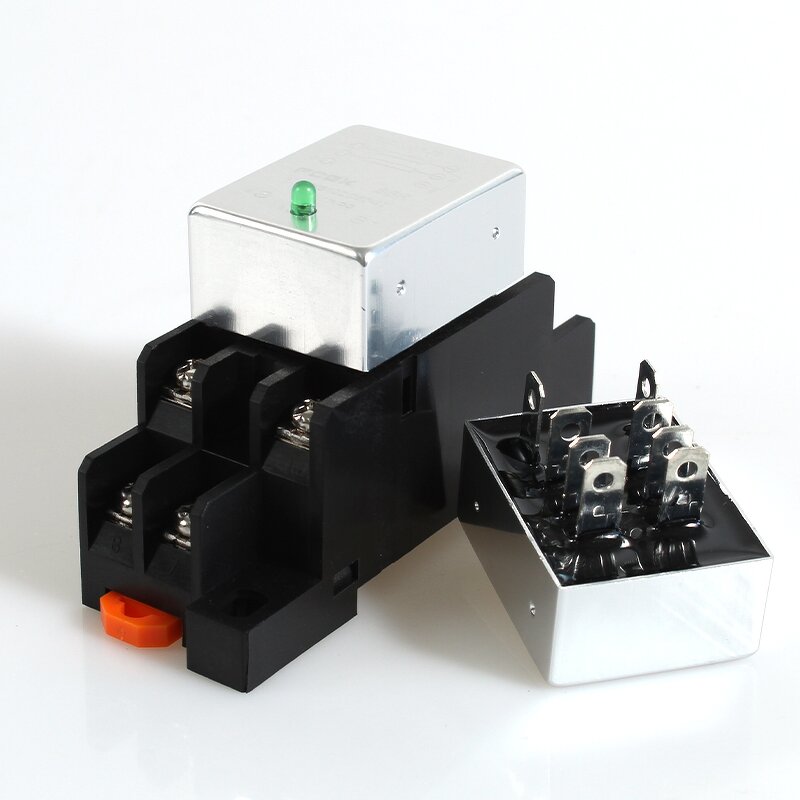

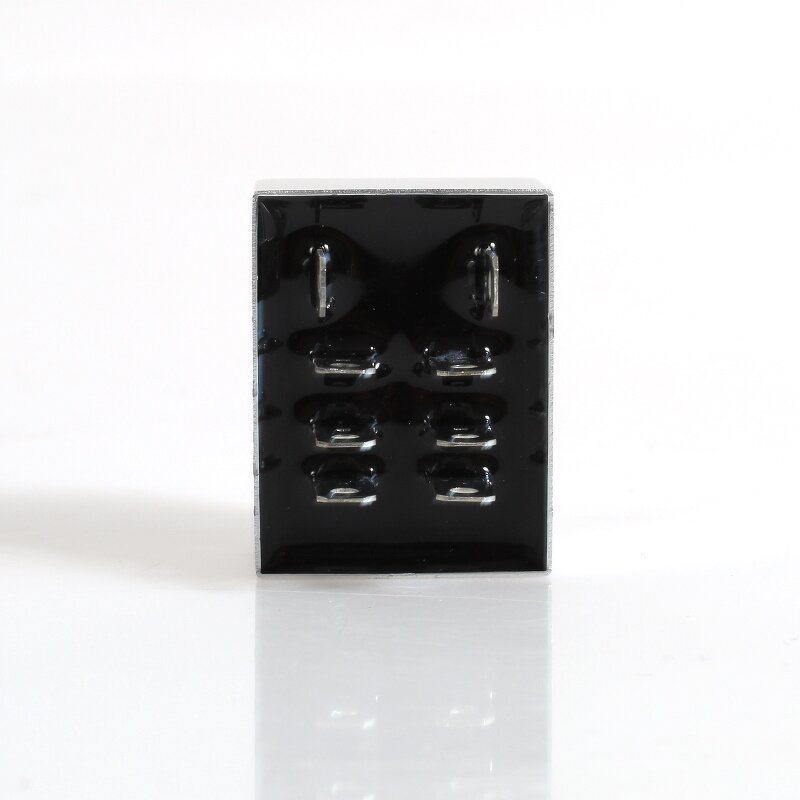

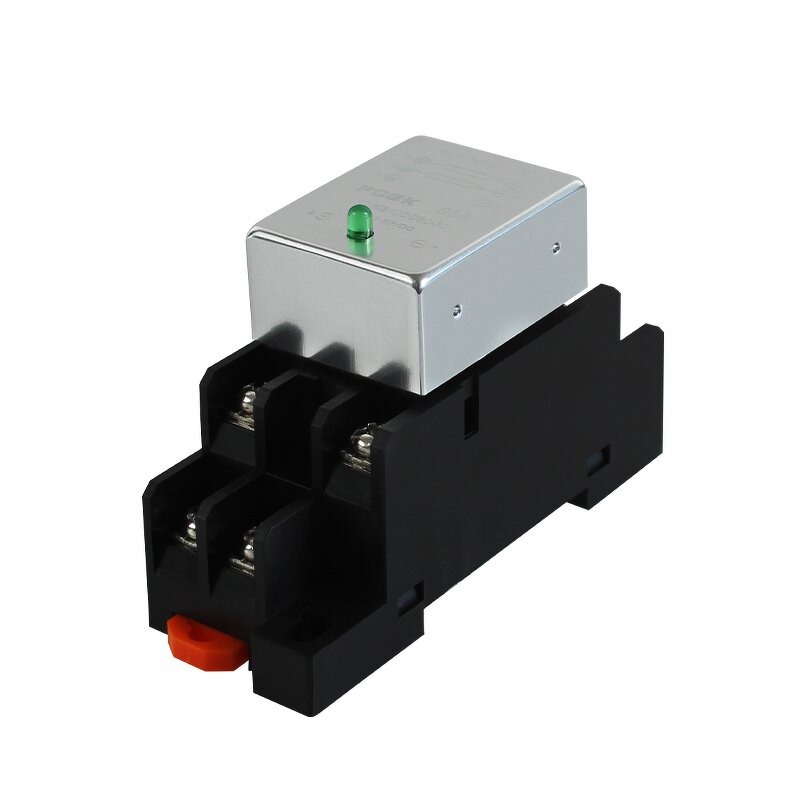

High Power 10A Solid State Relay - Small DIN Rail Normally Close Miniature Sealed
-
US$ 4.9
≥500
-
US$ 5.2
200–499
-
US$ 5.3
≤199
Product Attribute
Contact Load: High Power
Max. switching current: 100 A
Rated Current: Other
Place of Origin: Zhejiang, China
Model Number: WD-KB10DD50-14
Brand Name: FCGK
Contact Material: Silver Alloy
Max. switching voltage: 48 V
Power Source: AC
Protect Feature: Sealed
Size: Miniature
Terminal Shape: Screw Terminal
Theory: Solid State Relay
application: General Purpose
Load Current: 10A
Load Voltage: 10-50VDC

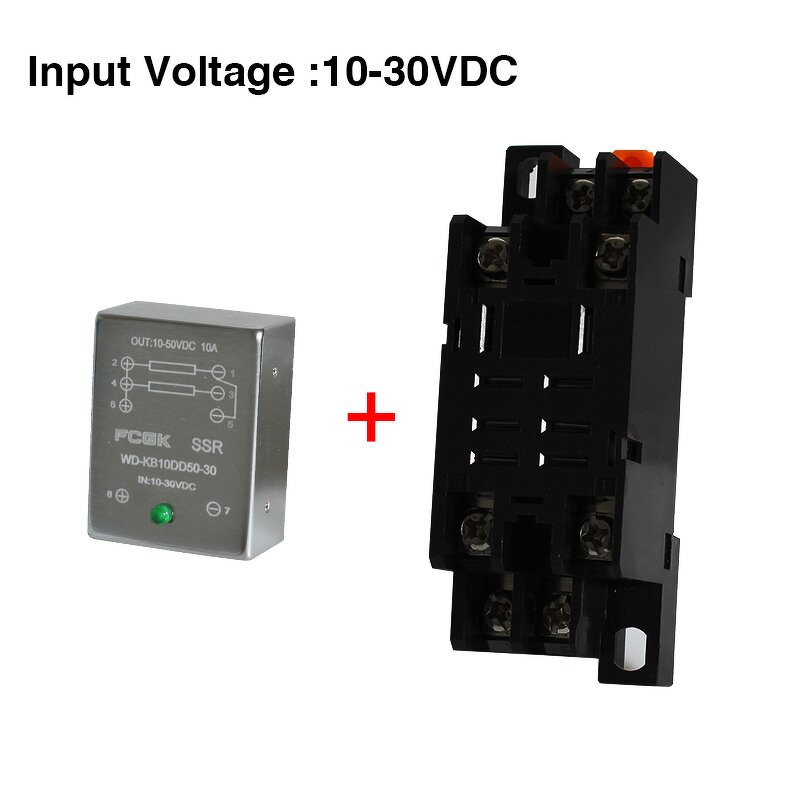

Control Voltage: 10-30VDC
Control current: DC3-25mA
On Voltage: ≤1.5V
Off Leakage Current: ≤2mA
On-off Time: ≤10mS
Dlelectric Stength: 2500VAC
Insulation Resistance: 1000MΩ
Ambient temperature: -30 ~+75℃
Selling Units: Single item
Single package size: 11.3X4.5X3.1 cm
Single gross weight: 0.400 kg
1 years
Main Products: Hot, Selling, Products, Relay, Temperature, Controller

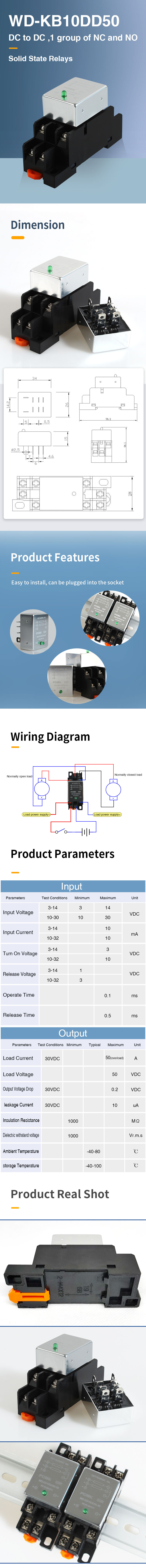

Product information
