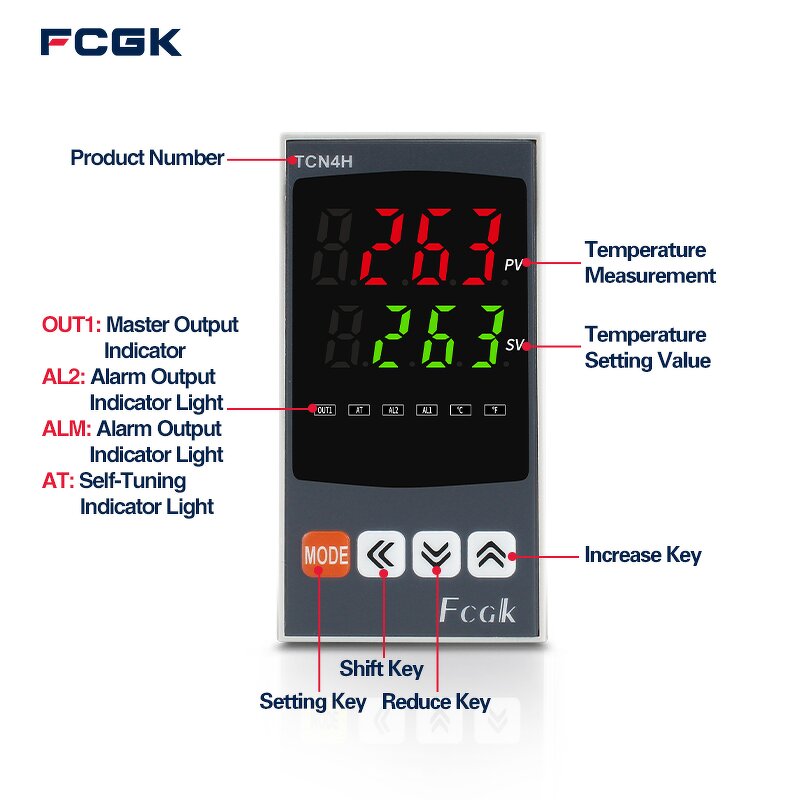

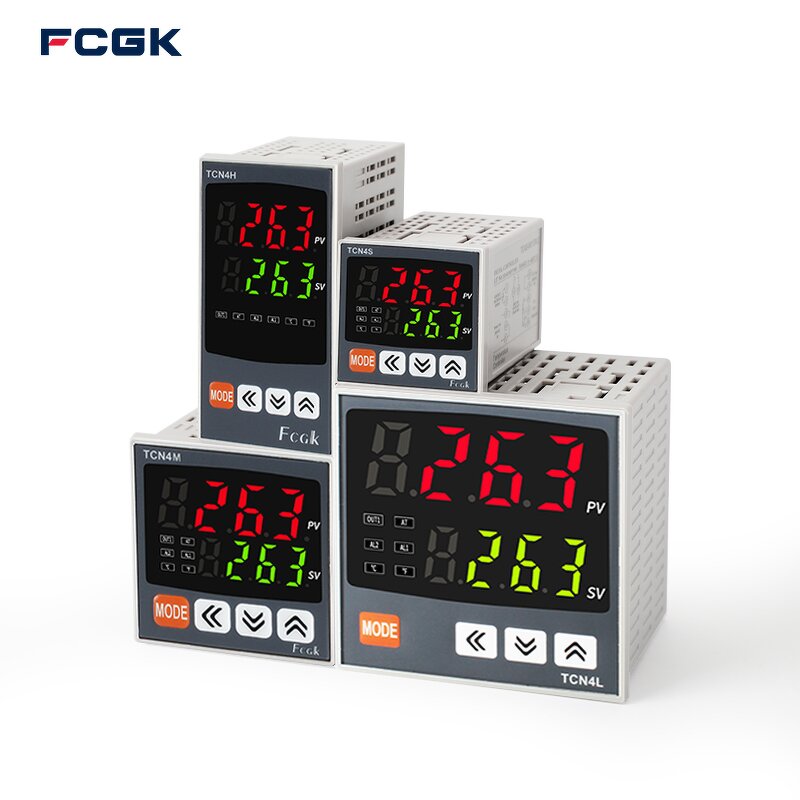

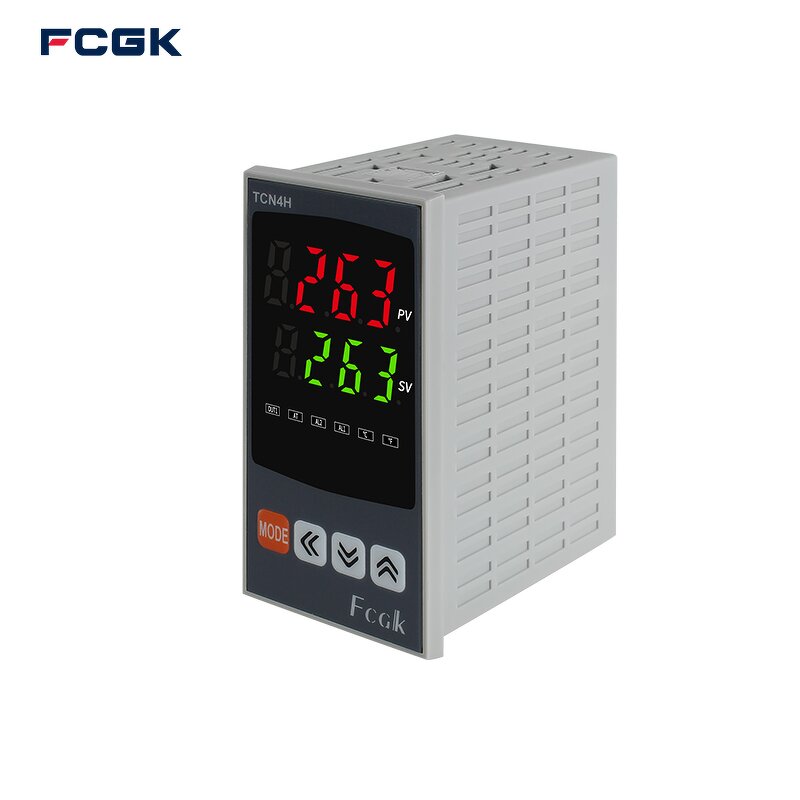

FCGK TCN4H 48x96 PID Intelligent Temperature Controller - DIN PID Oven Sauna Heating
-
US$ 7.6
≥500
-
US$ 7.8
200–499
-
US$ 7.95
10–199
Product Attribute
Display Type: Led Display
Temperature Resolution: 0.2 ℃
type: Temperature Controller
place of origin: Zhejiang, China
Communication Interface: Serial Port
IP Rating: IP65
model number: TCN4H
brand name: FCGK
customized support: OEM, ODM, OBM, Software Reengineering
infrared resolution: other
material: Other
thermal color palettes: other
warranty: 3 years

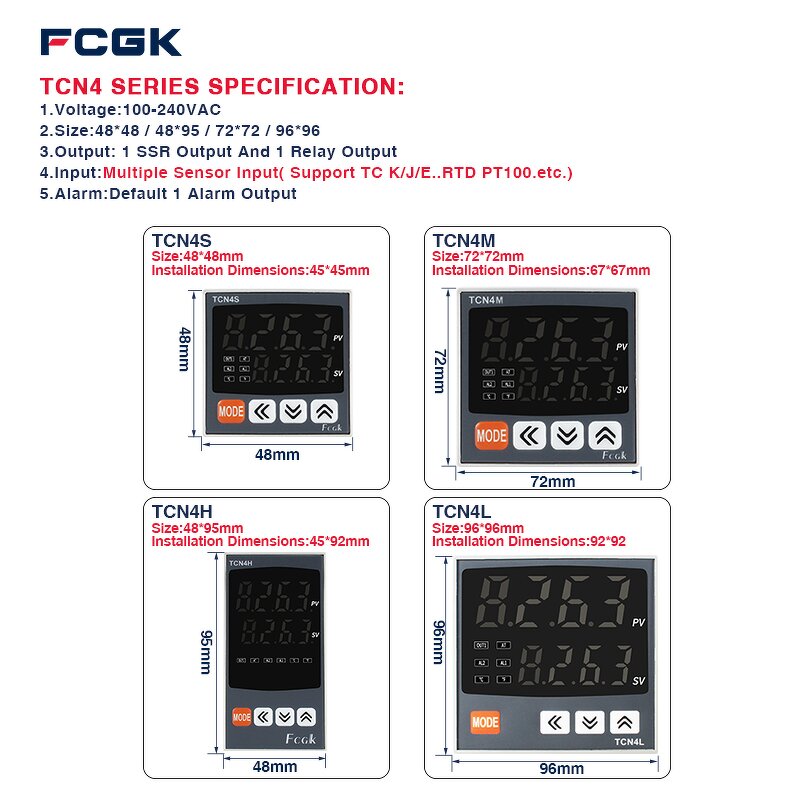

Dimensions:: 48mm*96mm*83mm
Input:: K/E/J/R/S/B/N/T/PT100/CU500 adjustable
Output: relay,SSR
Alarm: ALM,ALM 2
Control mode:: PID,ON/OFF
Power Supply:: 180V-240V AC 50hz/60Hz
Working Environment: Temperature 0°C~50°C RH:35%~85%
Display Type:: LCD
Accuracy:: 1°C/0.5°C Adjustable
Certification: CE
Selling Units: Single item
Single package size: 6X11X10 cm
Single gross weight: 0.350 kg
1 years
